- Constant Current mode output with multiple levels selectable by dip switch
- KNX/EIB protocol
- Flickerfree design
- Support emergency lighting(EL)
- Integrated constant light output
- Integrated KNX push button interface
- Synchronization up to 10units
- Functions: Manual dim, operation hours, power consumption feedback, log/linear curve selection...etc
High price? Log in and buy cheaper
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба

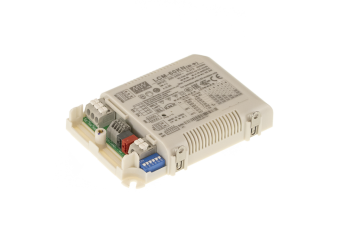

KNX LED driver LCM-60KN MEAN WELL
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLCM-60KNKNX LED driver 60W 2~90V 0.5~1.4AIn stockWarranty: 49,70 €61,13 €Login to check your price LCM-60KNKNX LED driver 60W 2~90V 0.5~1.4AAvailability:In stockNet price:49,70 €
Description
LCM-60KN series is a 60W AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch and the KNX interface to avoid using the complicated KNX-DALI gateway. LCM-60KN operates from 180~ 295VAC and offers different current levels ranging between 500mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -30°C ~+90°C case temperature under free air convection. In addition, LCM-60KN is equipped with push dimming and synchronization so as to provide the optimal design flexibility for LED lighting system.
Available models:
- LCM-60KN
Technical Specification
LCM-60KN: 60.3W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| LCM-60KN |
500mA, 2~90V |
+/-5 | 700mV | 91,5% | 123.5x81.5x23mm |
