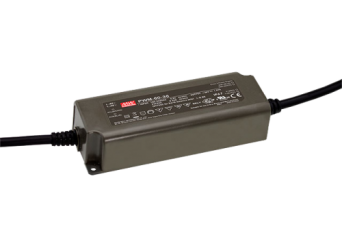

KNX LED driver PWM-60-KN
Constant voltage KNX LED power supply: PWM-60-12KN, PWM-60-24KN
- Constant Voltage PWM style output with user changeable frequency up to 4KHz compliant lEEE1789-2015 and EU Ecodesign SVM requirement
- Min. dimming level 0.01%
- Plastic housing with class II design
- Standby power consumption<0.5W
- Integrated KNX control protocol
- No need KNX-DALI gateway
- Typical lifetime>50000 hours
Висока цена? Влезте в профила си и купете на по-ниска
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
KNX LED driver PWM-60-KN
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиPWM-60-12KNKNX LED driver 60W 12V 5AПри доставка Гаранционен срок: 46,30 €56,95 €Влезте, за да проверите цената си PWM-60-12KNKNX LED driver 60W 12V 5AНаличност: При доставкаНетна цена:46,30 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиPWM-60-24KNKNX LED driver 60W 24V 2.5AНаличен на складГаранционен срок: 46,30 €56,95 €Влезте, за да проверите цената си PWM-60-24KNKNX LED driver 60W 24V 2.5AНаличност:Наличен на складНетна цена:46,30 €
Описание
PWM KN series is a 60W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the colour temperature and the brightness homogeneity when driving all kinds of LED strips and constant voltage LED bulbs.The built-in KNX interface is to avoid using the complicated KNX-DALI gateway.
PWM KN operates from 90~305VAC and offers two models with output voltage 12V and 24V.Thanks to the high efficiency up to 89%, with the fanless design, the entire series is able to operate for -35°C ~ +90°C case temperature under free air convection.
The minimal dimming level low to 0.01% is suitable for low light level applications eg. cinema. The output frequencyis changeable up to 4KHz complaint IEEE1789—2015 no risk requirement and EU Ecodesign stroboscopic visibility measure(SVM) requirement providing a great solution for health concern due to light fickering.
Available models:
- 12V: PWM-60-12
- 24V: PWM-60-24
Техническа спецификация
PWM-60-KN : 60W DETAILS
| Model | Output | Tolerance | Efficiency | Cable length | Dimension |
| PWM-60-12 | 12V, 0~5A | +/-4% | 86% | 300mm | 150x53x35mm |
| PWM-60-24 | 24V, 0~2.5A | +/-3% | 89% | 300mm | 150x53x35mm |
