- EIB / KNX power supply with integrated choke
- Compact size with 38U(52.5mm) width
- Safety extra low voltage(SELV)
- 180~264VAC input
- No load power consumption <O.5W
- Protections: Short circuit / Overload(short-circuit-proof) / Over voltage
- Cooling by free air convection
- Isolation class I
- LED indicator for normal operation, bus reset and bus overload
- Installed on DIN rail TS-35/7.5 or 15
- Over voltage category III
- 100% full load burn-in test
Висока цена? Влезте в профила си и купете на по-ниска
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
KNX-20E-640
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиKNX-20E-640KNX power supply 20W 30V 0.64AНаличен на складГаранционен срок: €68,60€84,38Влезте, за да проверите цената си KNX-20E-640KNX power supply 20W 30V 0.64AНаличност:Наличен на складНетна цена:€68,60
Описание

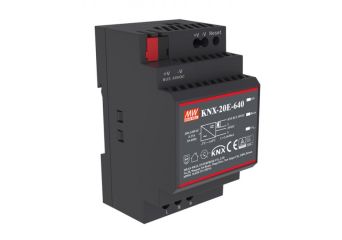

The KNX Power Supply KNX-20E-640 is a 640mA power supply with high efficiency and a small footprint of only 3SU (52.5 mm).The device has a KNX bus choke output and an additional output for ancillary power. The -30~+70°C wide temperature operating range can meet all kinds of applications. LED indicators are used in case of normal operation,overload conditions and RESET operation. It is perfectly suitable to power up any products labeled with the KNX trademark. With over 30 years of industrial power supply experience, KNX-20E-640 is engineered to be a reliable and safe solution for KNX bus environment.
Available models:
- 30V: KNX-20E-640
Техническа спецификация
KNX-20E: 19.2WW DETAILS
| Model | Output | Ripple & noise | Efficiency | Dimension |
| KNX-20E-640 | 30V, 0,64A | 100mV | 86% | 52.5x90x54.5mm |
