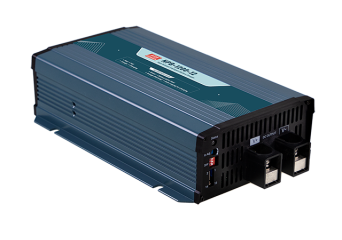

NPB-1200
Desktop battery charger: NPB-750-12, NPB-750-24, NPB-750-48
- Wide input voltage range: 90 ~ 264VAC, 127 ~ 370VDC
- Charging different types of batteries: lead-acid, lithium-ion (nickel-cobalt and LiFePO4)
- Fan cooling
- Regulation of output current and voltage
- Choice of 2 or 3 step charge curve
- Possibility to program your own charging curve
- Built-in CANBus protocol
- A wide range of acceptable operating temperatures: -30 ~ + 70 ° C
- Short-circuit, overvoltage, temperature and reverse polarity protection
- LED to indicate device status
- Compliance with EN62368, EN60335-1 / 2-29 standards
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Висока цена? Влезте в профила си и купете на по-ниска
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиNPB-1200-12desktop battery charger 1176W 13.8V 70AНаличен на складГаранционен срок: 250,20 €307,75 €Влезте, за да проверите цената си NPB-1200-12desktop battery charger 1176W 13.8V 70AНаличност:Наличен на складНетна цена:250,20 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиNPB-1200-24desktop battery charger 1210W 27.6V 36AНаличен на складГаранционен срок: 250,20 €307,75 €Влезте, за да проверите цената си NPB-1200-24desktop battery charger 1210W 27.6V 36AНаличност:Наличен на складНетна цена:250,20 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиNPB-1200-48desktop battery charger 1210W 55.2V 18AНаличен на складГаранционен срок: 250,20 €307,75 €Влезте, за да проверите цената си NPB-1200-48desktop battery charger 1210W 55.2V 18AНаличност:Наличен на складНетна цена:250,20 €
Аксесоари
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиCarry handleCarry handle for NPB, NTS, NTU seriesНаличен на складГаранционен срок: 5,10 €6,27 €Влезте, за да проверите цената си Carry handleCarry handle for NPB, NTS, NTU seriesНаличност:Наличен на складНетна цена:5,10 €
Описание
NPB is a series of chargers dedicated to lead-acid and lithium-ion batteries. Works with both nickel-cobalt and iron-phosphate (LiFePO4) batteries. The NPB-1200 model has a power rating of 1176 ~ 1209.6W and offers an output voltage (depending on the model): 10.5 ~ 21V, 21 ~ 42V or 42 ~ 80VDC. The device has a wide range of output voltage and the function of automatic selection of the charging voltage (only in the case of li-ion batteries with a BMS system). Thanks to this, it will work in applications with many voltages and types of batteries.
NPB-1200 is equipped with the CANBus protocol and extensive remote control functions. With the use of an external programmer SPB-001 it is possible to change the charging current and voltage and to program own charging curves. Changing the charging waveforms is also possible from the switch on the housing.
The charger is overvoltage, temperature and reverse polarity protected. The allowable operating temperature range is: -30 ~ + 70 ° C.
Application examples:
- Charging scooters, bicycles and other electric vehicles
- Charging batteries, e.g. electric tools
- Car, caravan and yacht batteries
- Power backup systems
Техническа спецификация
- NPB-1200: desktop battery charger 1176~1209.6W - SPECIFICATION
| Model | Output | Efficiency | Plug | Dimensions |
| NPB-1200-12 | 12V, 70A | 92% | terminal śrubowy | 250x158x67mm |
| NPB-1200-24 | 24V, 36A | 93% | terminal śrubowy | 250x158x67mm |
| NPB-1200-48 | 48V, 18A | 93% | terminal śrubowy | 250x158x67mm |
