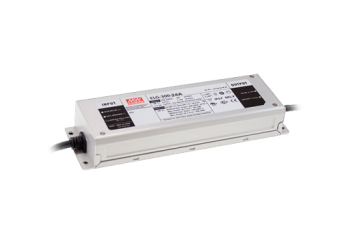

ELG-300
Constant voltage LED power supply: ELG-300-12A, ELG-300-24A
- Constant Voltage + Constant Current mode output
- Protection Functions: OCP, SCP, OVP, OTP
- IP67 rating for indoor or outdoor installations
- Output adjustable via potentiometer
- Typical lifetime>50000 hours
Висока цена? Влезте в профила си и купете на по-ниска
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиELG-300-12ALED driver 300W 12V 22AНаличен на складГаранционен срок: €72.00€88.56Влезте, за да проверите цената си ELG-300-12ALED driver 300W 12V 22AНаличност:Наличен на складНетна цена:€72.00 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиELG-300-24ALED driver 240W 24V 12.5AПри доставка Гаранционен срок: €72.00€88.56Влезте, за да проверите цената си ELG-300-24ALED driver 240W 24V 12.5AНаличност: При доставкаНетна цена:€72.00
Описание
ELG-300 series is a 300W LED driver featuring with constant current and Constant voltage mode design. ELG-300 operates from 100-305VAC and Offers CV mode or CC mode applications. Thanks to the high efficiency up to 94%, with the fanless design, the ambient temperature can be operated for -40°C~+85°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world, as to provide the optimal design flexibility for LED lighting system.
Available models:
- 12V: ELG-300-12A
- 24V: ELG-300-24A
Техническа спецификация
ELG-300: 264~300W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Cable length | Dimension |
| ELG-300-12A | 12V, 0~22A | +/-3% | 150mV | 91% | 300mm | 246x77x39.5mm |
| ELG-300-24A | 24V, 0~12.5A | +/-2% | 240mV | 94% | 300mm | 246x77x39.5mm |
