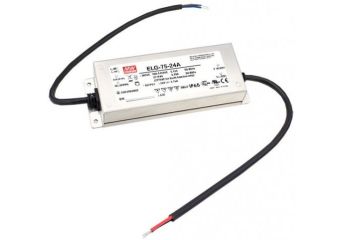

ELG-75

Constant voltage LED power supply: ELG-75-12, ELG-75-24, ELG-75-12, ELG-75-36, ELG-75-42, ELG-75-48

  • Constant Voltage + Constant Current mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • Class 2 power unit
  • No load / Standby power consumption <0.5W
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer;
  • 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
  • Typical lifetime>50000 hours
Цена от €30.20 нетна цена

Висока цена? Влезте в профила си и купете на по-ниска

Наличен на склад

Поръчайте до 12:00 и ще бъде изпратен в рамките на деня

Безплатна доставка от €100

Вижте 60 модела

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба

Модели

Описание

ELG-75 series is a 75W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-75 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40~+85°C case temperature under free air convection. The design of metal housing and IP67/lP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Available models:

  • 12V: ELG-75-12
  • 24V: ELG-75-24
  • 36V: ELG-75-36
  • 42V: ELG-75-42
  • 48V: ELG-75-48

Техническа спецификация

ELG-75: 60 - 76.8W DETAILS

Model Output Tolerance Ripple & noise Efficiency Cable length Dimension
ELG-75-12 12V, 0~5A +/-3% 150mV 86% 300mm 180x63x35.5mm
ELG-75-24 24V, 0~3.15A +/-3% 200mV 88% 300mm 180x63x35.5mm
ELG-75-36 36V, 0~2.1A +/-2,5% 250mV 89% 300mm 180x63x35.5mm
ELG-75-42 42V, 0~1.8A +/-2,5% 250mV 90% 300mm 180x63x35.5mm
ELG-75-48 48V, 0~1.6A +/-2% 250mV 90% 300mm 180x63x35.5mm
