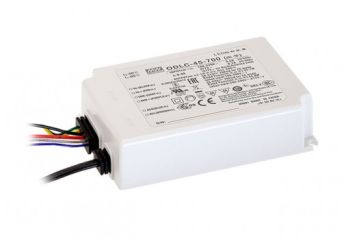

ODLC-45
Constant current LED power supply: ODLC-45-350, ODLC-45-500, ODLC-45-700, ODLC-45-1050, ODLC-45-1400
Производител: MEAN WELL
Производител: MEAN WELL
- Constant Current mode output
- Flicker free design
- Plastic housing with class II design
- Built-in active PFC function
- No load power consumption<0.5W(Blank-Type),
- Standby power consumption<0.5W(DA-Type)
- IP67 rating for indoor or outdoor installations
- Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output; DALI
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
ODLC-45
Description
ODLC-45 series is a 45W LED AC/DC driver featuring the constant current mode output with flicker free design. ODLC-45 operates from 90~295VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the efficiency up to 86%, with the fanless design, the entire series is able to operate for -20°C~+85°C case temperature under free convection. The design of plastic housing and IP67 ingress protection level allows this series to fit indoor wet applications. ODLC-45 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for lighting system.
Available models:
- 350mA: ODLC-45-350
- 500mA: ODLC-45-500
- 700mA: ODLC-45-700
- 1050mA: ODLC-45-1050
- 1400mA: ODLC-45-1400
Technical Specification
ODLC-45: 45W DETAILS
| Model | Output | Tolerance | Efficiency | Dimension |
| ODLC-45-350 | 57~95V, 350mA | +/-5% | 86% | 111x77x28.5mm |
| ODLC-45-500 | 54~90V, 500mA | +/-5% | 85% | 111x77x28.5mm |
| ODLC-45-700 | 38~64V, 700mA | +/-5% | 85% | 111x77x28.5mm |
| ODLC-45-1050 | 26~43V, 1050mA | +/-5% | 84% | 111x77x28.5mm |
| ODLC-45-1400 | 19~32V, 1400mA | +/-5% | 83% | 111x77x28.5mm |
