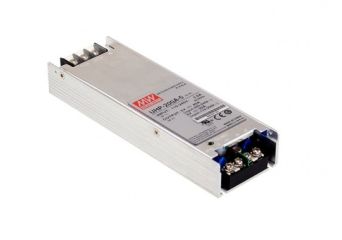

UHP-200A

LED sign panel power supply: UHP-200A-4.2, UHP-200A-4.5, UHP-200A-5

  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 seconds
  • Low profile:26mm
  • Built-in active PFC function
  • Fanless design, cooling by free air convection
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Low leakage current<1.0mA
  • LED indicator for power on
Цена от €47.50 нетна цена

Висока цена? Влезте в профила си и купете на по-ниска

Изчерпан

Безплатна доставка от €100

Вижте 3 модела

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба
Zasilacz led z niskim napięciem wyjściowym UHP-200A

UHP-200A

Модели

Описание

UHP-200A series is a 200W LED display power solution. The ultra low profile design that allows the height and weight of the sign module to be slim. It greatly simplifies the delivery and installation process. Accounting for high efficiency and energy saving, the series effectively achieves electricity reduction. It is suitable for LED signage display, moving sign, LED channel letter and LED TV wall etc.

Available models:

  • 4.2V: UHP-200A-4.2
  • 4.5V: UHP-200A-4.5
  • 5V: UHP-200A-5

Техническа спецификация

UHP-200A: 168-200W DETAILS

Model Output Tolerance Ripple & noise Efficiency Cable length Dimension
UHP-200A-4.2 4.2V, 0~40A +/-4% 200mV 88% 300mm 167x55x26mm
UHP-200A-4.5 4.5V, 0~40A +/-4% 200mV 88% 300mm 167x55x26mm
UHP-200A-5 5V, 0~40A +/-4% 200mV 88.5% 300mm 167x55x26mm

Download
