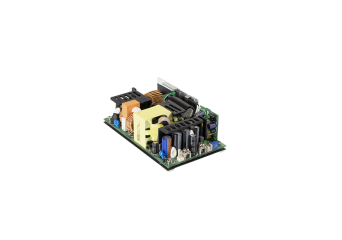

RPS-500

RPS medical power supplies

  • Input voltage 80-264 VAC, 113-370 VDC
  • Compact size
  • Compliance with the directive IEC / EN60601-1
  • 320W output power without additional fan, 500W with fan
  • No load power consumption below 0.5W PS-On
  • Additional output 5 VDC standby, 12 VDC (for fan), Power Good, Power Fail, Remote Sense
  • Protections: Short-circuit, Overload, Over-voltage, Temperature
  • Available versions without casing, with casing (C), with fan on top (TF), with side fan (SF)
  • 3-year warranty



Цена от 84,00 € нетна цена

Висока цена? Влезте в профила си и купете на по-ниска

Изчерпан

Безплатна доставка от €100

Вижте 28 модела

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба
RPS-500

RPS-500

Модели

Описание

The RPS-400 MEAN WELL medical power supply is used, among others, in medical applications and wherever small dimensions and high output power count.

Техническа спецификация

  • RPS-500: power supply 499~500W (details)
Model Output Tolerance Ripple Efficiency Dimensions
RPS-500-12 12V, 0~41.6A +/-3% 200mV 91.5% 127x76.2x35mm
RPS-500-15 15V, 0~33.3A +/-3% 200mV 92% 127x76.2x35mm
RPS-500-18 18V, 0~27.8A +/-3% 200mV 92% 127x76.2x35mm
RPS-500-24 24V, 0~20.8A +/-2% 200mV 93% 127x76.2x35mm
RPS-500-27 27V, 0~18.5A +/-1% 200mV 93.5% 127x76.2x35mm
RPS-500-36 36V, 0~13.9A +/-1% 200mV 94% 127x76.2x35mm
RPS-500-48 48V, 0~6.7A +/-1% 200mV 94% 127x76.2x35mm
