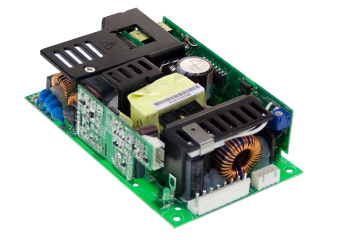

RPTG-160
3 - output medical power supplies, PCB Open Frame type, with PFC function: RPTG-160A, RPTG-160B, RPTG-160C, RPTG-160D
Производител: MEAN WELL
Производител: MEAN WELL
- input voltage 90-264VAC 120-370VDC
- protections: short circuit, overvoltage and overload protection
- Thermal protection
- adjustable output voltage in the range of 5 ~ 5.5V
- cooling with open air circulation
- output power: 100W convection, 145W forced circulation
- working temperature -20 ~ + 70 ° C
- work status signaling
- compliance with medical standards
- 5V standby output
- low leakage current
- small size
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от 70,30 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
RPTG-160
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPTG-160Aopen frame power supply 160W 5V, 12V, -5VOut of stock Warranty: 70,30 €86,47 €Login to check your price RPTG-160Aopen frame power supply 160W 5V, 12V, -5VAvailability: Out of stockNet price:70,30 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPTG-160Bopen frame power supply 160W 5V, 12V, -12VOut of stock Warranty: 70,30 €86,47 €Login to check your price RPTG-160Bopen frame power supply 160W 5V, 12V, -12VAvailability: Out of stockNet price:70,30 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPTG-160Copen frame power supply 160W 5V, 15V, -15VOut of stock Warranty: 70,30 €86,47 €Login to check your price RPTG-160Copen frame power supply 160W 5V, 15V, -15VAvailability: Out of stockNet price:70,30 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPTG-160Dopen frame power supply 160W 5V, 12V, 24VOut of stock Warranty: 70,30 €86,47 €Login to check your price RPTG-160Dopen frame power supply 160W 5V, 12V, 24VAvailability: Out of stockNet price:70,30 €
Description
The series of 2,3-output medical power supplies without housing is designed for use in medical applications, automation, electronics, telecommunications, etc. Compliance with medical standards guarantees a high degree of safety. The lack of an enclosure allows great freedom of installation. Small size, high quality and reliability make the power supplies perfect for installation in a powered device. The derived input and output connectors facilitate the connection of wires.
Technical Specification
-
RPT/RPTG-160: 139~144W DETAILS
Model Output Tolerance Ripple & noise Efficiency Max power Dimension RPT-160A 5V, 0.6~8.0A
12V, 0.2~4.0A
-5V, 0.1~1.0A+/-2%
+/-5%
-5%,+7%100mV
120mV
120mV84% 141W 127x76.2x34.6mm RPT-160B 5V, 0.6~14A
12V, 0.2~5.0A
-12V, 0.1~1.0A+/-2%
+/-6%
+/-5%100mV
120mV
120mV84% 142W 127x76.2x34.6mm RPT-160C 5V, 0.6~8.0A
15V, 0.1~3.0A
-15V, 0.1~1.0A+/-2%
+/-4%
-5%,+7%100mV
150mV
150mV83% 139W 127x76.2x34.6mm RPT-160D 5V, 0.3~11A
12V, 0.2~5.0A
24V, 0.15~1.2A+/-2%
+/-5%
+/-4%100mV
120mV
200mV83% 144W 127x76.2x34.6mm
