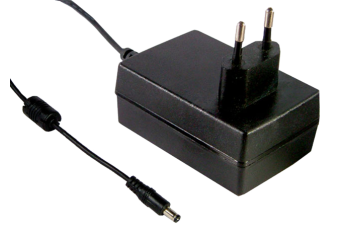

GSM18E

GSM series is a highly reliable, wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard European power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP), having an ultra low leakage current, fitting the medical devices in direct electrical contact with the patients.

With the extreme low no-load power consumption below, GSM series is compliant with EU ErP and meet Code of Conduct(CoC) Version 5; the supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM series is approved with the international medical safety certificates.

Available models:

• 5V: GSM06E05-P1J, GSM18E05-P1J, GSM25E05-P1J, GSM36E05-P1J
• 6V: GSM06E06-P1J
• 7.5V: GSM06E07-P1J, GSM18E07-P1J, GSM25E07-P1J, GSM36E07-P1J
• 9V: GSM06E09-P1J, GSM18E09-P1J, GSM25E09-P1J, GSM36E09-P1J
• 12V: GSM06E12-P1J, GSM18E12-P1J, GSM25E12-P1J, GSM36E12-P1J
• 15V: GSM06E15-P1J, GSM18E15-P1J, GSM25E15-P1J, GSM36E15-P1J
• 18V: GSM06E18-P1J, GSM18E18-P1J, GSM25E18-P1J, GSM36E18-P1J
• 24V: GSM06E24-P1J, GSM18E24-P1J, GSM25E24-P1J, GSM36E24-P1J
• 48V: GSM18E48-P1J, GSM25E48-P1J, GSM36E48-P1J
