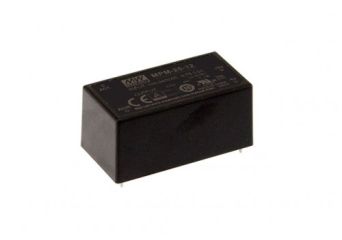

MPM-20
Module type medical power supply: MPM-20-15, MPM-20-24, MPM-20-3.3, MPM-20-5, MPM-20-12
- 2.06”x1,07” compact size
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- Suitable for BF application with appropriate system consideration
- No load power consumption<0.1W
- Extremely low leakage current
- Wide operating temp. range -40 ~+85°C
- EMI class B for class II configuration
- Protections: Short circuit / Overload / Over voltage / Over temperature
- No minimum load required
High price? Log in and buy cheaper
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-20-15medical power supply 20W 15V 1.4AOut of stock Warranty: 12,50 €15,38 €Login to check your price MPM-20-15medical power supply 20W 15V 1.4AAvailability: Out of stockNet price:12,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-20-24medical power supply 20W 24V 0.9AOut of stock Warranty: 12,50 €15,38 €Login to check your price MPM-20-24medical power supply 20W 24V 0.9AAvailability: Out of stockNet price:12,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-20-3.3medical power supply 15W 3.3V 4.5AOut of stock Warranty: 12,50 €15,38 €Login to check your price MPM-20-3.3medical power supply 15W 3.3V 4.5AAvailability: Out of stockNet price:12,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-20-5medical power supply 20W 5V 4AIn stockWarranty: 12,50 €15,38 €Login to check your price MPM-20-5medical power supply 20W 5V 4AAvailability:In stockNet price:12,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-20-12medical power supply 20W 12V 1.8AOut of stock Warranty: 12,50 €15,38 €Login to check your price MPM-20-12medical power supply 20W 12V 1.8AAvailability: Out of stockNet price:12,50 €
Description
MPM-20 is a 20W high densiły and small size (52.4*27.2*24mm) AC/DC module type medical power supply series offered in pin type. It features the operation for 80~264VAC, a low no load power consumption less than 0.1 W, a high efficiency up to 87%, Class II (no FG) double insulation, outstanding dissipation and high lifespan thanks to the interior potting, 2G anti-vibration, high EMC performance, 4KVAC isolation, etc. The design observes IEC/EN60601-1 and ANSI/AAMI ES60601-1 version three with 2xMOPP level and ultra-low leakage current (<80 μA). It is very suitable for BF (patient contact) type medical device or relevant equipment.
Available models:
- 3.3V: MPM-20-3.3
- 5V: MPM-20-5
- 12V: MPM-20-12
- 15V: MPM-20-15
- 24V: MPM-20-24
Technical Specification
MPM-10: 14.9-21.6W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| MPM-20-3.3 | 3.3V, 0~4.5A | +/-1.5% | 150mV | 81% | 52.4x27.2x24mm |
| MPM-20-5 | 5V, 0~4A | +/-1.5% | 150mV | 85% | 52.4x27.2x24mm |
| MPM-20-12 | 12V, 0~1.8A | +/-1.5% | 150mV | 85.5% | 52.4x27.2x24mm |
| MPM-20-15 | 15V, 0~1.4A | +/-1.5% | 180mV | 87% | 52.4x27.2x24mm |
| MPM-20-24 | 24V, 0~0.9A | +/-1.5% | 180mV | 87% | 52.4x27.2x24mm |
