MPM-45
Module type medical power supply: MPM-45-5, MPM-45-12, MPM-45-15, MPM-45-24, MPM-45-48, MPM-45-5ST, MPM-45-12ST, MPM-45-15ST, MPM-45-24ST, MPM-45-48ST
Производител: MEAN WELL
Производител: MEAN WELL
- 3.43"x2.05” compact size
- PCB chassis or screw terminal mounting version
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- Suitable for BF application with appropriate system consideration
- No load power consumption<0.1W
- Extremely low leakage current
- Wide operating temp. range -30~+80°C
- EMI Class B without additional components
- Isolation Class II
- Protections: Short circuit / Overload / Over voltage
- No minimum load required
- Operating altitude up to 4000 meters( Note.7)
- 50W peak(10 sec.)
Цена от 19,50 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-45-5medical power supply 45W 5V 8AOut of stock Warranty: 19,50 €23,99 €Login to check your price MPM-45-5medical power supply 45W 5V 8AAvailability: Out of stockNet price:19,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-45-12medical power supply 45W 12V 3.75AOut of stock Warranty: 19,50 €23,99 €Login to check your price MPM-45-12medical power supply 45W 12V 3.75AAvailability: Out of stockNet price:19,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-45-15medical power supply 45W 15V 3AOut of stock Warranty: 19,50 €23,99 €Login to check your price MPM-45-15medical power supply 45W 15V 3AAvailability: Out of stockNet price:19,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-45-24medical power supply 45W 24V 1.88AOut of stock Warranty: 19,50 €23,99 €Login to check your price MPM-45-24medical power supply 45W 24V 1.88AAvailability: Out of stockNet price:19,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-45-48medical power supply 45W 48V 0.94AOut of stock Warranty: 19,50 €23,99 €Login to check your price MPM-45-48medical power supply 45W 48V 0.94AAvailability: Out of stockNet price:19,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-45-5STmedical power supply 45W 5V 8AOut of stock Warranty: 21,10 €25,95 €Login to check your price MPM-45-5STmedical power supply 45W 5V 8AAvailability: Out of stockNet price:21,10 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-45-12STmedical power supply 45W 12V 3.75AOut of stock Warranty: 21,10 €25,95 €Login to check your price MPM-45-12STmedical power supply 45W 12V 3.75AAvailability: Out of stockNet price:21,10 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-45-15STmedical power supply 45W 15V 3AOut of stock Warranty: 21,10 €25,95 €Login to check your price MPM-45-15STmedical power supply 45W 15V 3AAvailability: Out of stockNet price:21,10 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-45-24STmedical power supply 45W 24V 1.88AOut of stock Warranty: 21,10 €25,95 €Login to check your price MPM-45-24STmedical power supply 45W 24V 1.88AAvailability: Out of stockNet price:21,10 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-45-48STmedical power supply 45W 48V 0.94AOut of stock Warranty: 21,10 €25,95 €Login to check your price MPM-45-48STmedical power supply 45W 48V 0.94AAvailability: Out of stockNet price:21,10 €
Description

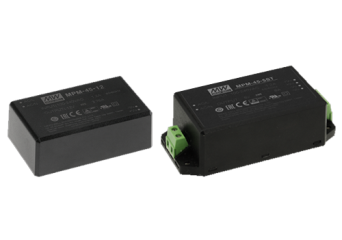

MPM-45 is a 45W high densiły and small size (87x52x29.5mm) AC/DC PCB-mount type medical grade power supply. It features the operation for a low no load power consumption less than 0.1W, a high efficiency up to 92.5%, Class II (no FG) double insulation, outstanding dissipation, 2~5G anti-vibration by model, high EMC performance, 4KVAC isolation, etc. The design observes IEC/EN60601-1 and ANSI/AAMI ES60601-1 version three with 2 x MOPP level and ultra-low leakage current (<100μA). It is very suitable for BF (patient contact) type medical device or relevant equipment.
Available models:
- 5V: MPM-45-5, MPM-45-5ST
- 12V: MPM-45-12, MPM-45-12ST
- 15V: MPM-45-15, MPM-45-15ST
- 24V: MPM-45-24, MPM-45-24ST
- 48V: MPM-45-48, MPM-45-48ST
Technical Specification
MPM-45 / MPM-45ST: 44~50,4W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension (PCB / Screw terminal) |
| MPM-45-5 | 5V, 0~8A | +/-2% | 80mV | 88% | 87x52x29.5mm / 109x52x33.5mm |
| MPM-45-12 | 12V, 0~3.75A | +/-2% | 120mV | 91.5% | 87x52x29.5mm / 109x52x33.5mm |
| MPM-45-15 | 15V, 0~3A | +/-2% | 120mV | 92.5% | 87x52x29.5mm / 109x52x33.5mm |
| MPM-45-24 | 24V, 0~1.88A | +/-2% | 200mV | 92.5% | 87x52x29.5mm / 109x52x33.5mm |
| MPM-45-48 | 48V, 0~0.94A | +/-2% | 240mV | 92% | 87x52x29.5mm / 109x52x33.5mm |
