MPM-65
Module type medical power supply: MPM-65-12, MPM-65-12ST, MPM-65-15, MPM-65-15ST, MPM-65-24, MPM-65-24ST, MPM-65-48, MPM-65-48ST, MPM-65-5, MPM-65-5ST
Производител: MEAN WELL
Производител: MEAN WELL
- 3.43"x2.05” compact size
- PCB chassis or screw terminal mounting version
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- Suitable for BF application with appropriate system consideration
- No load power consumption<0.1W
- Extremely low leakage current
- Wide operating temp. range -30~+80°C
- EMI Class B without additional components
- Isolation Class II
- Protections: Short circuit / Overload / Over voltage
- No minimum load required
- Operating altitude up to 4000 meters( Note.7)
- 71W peak(10 sec.)
Цена от 22,10 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-65-12medical power supply 65W 12V 5.42AOut of stock Warranty: 22,10 €27,18 €Login to check your price MPM-65-12medical power supply 65W 12V 5.42AAvailability: Out of stockNet price:22,10 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-65-12STmedical power supply 65W 12V 5.42AOut of stock Warranty: 23,70 €29,15 €Login to check your price MPM-65-12STmedical power supply 65W 12V 5.42AAvailability: Out of stockNet price:23,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-65-15medical power supply 65W 15V 4.33AOut of stock Warranty: 22,10 €27,18 €Login to check your price MPM-65-15medical power supply 65W 15V 4.33AAvailability: Out of stockNet price:22,10 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-65-15STmedical power supply 65W 15V 4.33AOut of stock Warranty: 23,70 €29,15 €Login to check your price MPM-65-15STmedical power supply 65W 15V 4.33AAvailability: Out of stockNet price:23,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-65-24medical power supply 65W 24V 2.71AOut of stock Warranty: 22,10 €27,18 €Login to check your price MPM-65-24medical power supply 65W 24V 2.71AAvailability: Out of stockNet price:22,10 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-65-24STmedical power supply 65W 24V 2.71AOut of stock Warranty: 23,70 €29,15 €Login to check your price MPM-65-24STmedical power supply 65W 24V 2.71AAvailability: Out of stockNet price:23,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-65-48medical power supply 65W 48V 1.36AOut of stock Warranty: 22,10 €27,18 €Login to check your price MPM-65-48medical power supply 65W 48V 1.36AAvailability: Out of stockNet price:22,10 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-65-48STmedical power supply 65W 48V 1.36AOut of stock Warranty: 23,70 €29,15 €Login to check your price MPM-65-48STmedical power supply 65W 48V 1.36AAvailability: Out of stockNet price:23,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-65-5medical power supply 50W 5V 10AOut of stock Warranty: 22,10 €27,18 €Login to check your price MPM-65-5medical power supply 50W 5V 10AAvailability: Out of stockNet price:22,10 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-65-5STmedical power supply 50W 5V 10AOut of stock Warranty: 23,70 €29,15 €Login to check your price MPM-65-5STmedical power supply 50W 5V 10AAvailability: Out of stockNet price:23,70 €
Description

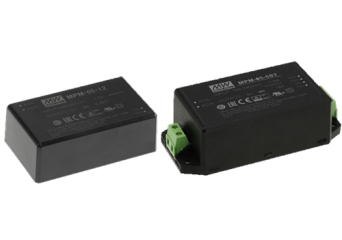

MPM-65 is a 65W high densiły and small size (87x52x29.5mm) AC/DC PCB-mount type medical grade power supply. It features the operation for a low no load power consumption less than 0.1W, a high efficiency up to 93%, Class II (no FG) double insulation, outstanding dissipation, 2~5G anti-vibration by model, high EMC performance, 4KVAC isolation, etc. The design observes IEC/EN60601-1 and ANSI/AAMI ES60601-1 version three with 2 x MOPP level and ultra-low leakage current (<100μA). It is very suitable for BF (patient contact) type medical device or relevant equipment.
Available models:
- 5V: MPM-65-5, MPM-65-5ST
- 12V: MPM-65-12, MPM-65-12ST
- 15V: MPM-65-15, MPM-65-15ST
- 24V: MPM-65-24, MPM-65-24ST
- 48V: MPM-65-48, MPM-65-48ST
Technical Specification
MPM-65 / MPM-65ST: 50-65,3W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension (PCB / screw terminal) |
| MPM-65-5 | 5V, 0~10A | +/-2% | 80mV | 86.5% | 87x52x29.5mm / 109x52x33.5mm |
| MPM-65-12 | 12V, 0~5.42A | +/-2% | 120mV | 92.5% | 87x52x29.5mm / 109x52x33.5mm |
| MPM-65-15 | 15V, 0~4.33A | +/-2% | 120mV | 92.5% | 87x52x29.5mm / 109x52x33.5mm |
| MPM-65-24 | 24V, 0~2.71A | +/-2% | 200mV | 93% | 87x52x29.5mm / 109x52x33.5mm |
| MPM-65-48 | 48V, 0~1.36A | +/-2% | 240mV | 92% | 87x52x29.5mm / 109x52x33.5mm |
