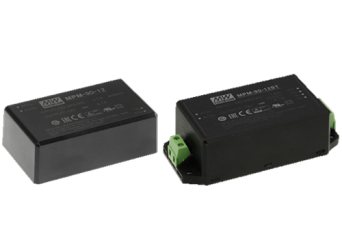

MPM-90
Module type medical power supply: MPM-90-12, MPM-90-12ST, MPM-90-15, MPM-90-15ST, MPM-90-24, MPM-90-24ST, MPM-90-48, MPM-90-48ST
Производител: MEAN WELL
Производител: MEAN WELL
- 3.43"x2.05” compact size
- PCB chassis or screw terminal mounting version
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- Suitable for BF application with appropriate system consideration
- No load power consumption<0.1W
- Extremely low leakage current
- Wide operating temp. range -30~+80°C
- EMI Class B without additional components
- Isolation Class II
- Protections: Short circuit / Overload / Over voltage
- No minimum load required
- Operating altitude up to 4000 meters( Note.7)
- 100W peak(10 sec.)
Цена от 24,90 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-90-12medical power supply 80W 12V 6.7AOut of stock Warranty: 24,90 €30,63 €Login to check your price MPM-90-12medical power supply 80W 12V 6.7AAvailability: Out of stockNet price:24,90 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-90-12STmedical power supply 80W 12V 6.7AOut of stock Warranty: 26,40 €32,47 €Login to check your price MPM-90-12STmedical power supply 80W 12V 6.7AAvailability: Out of stockNet price:26,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-90-15medical power supply 85W 15V 5.67AOut of stock Warranty: 24,90 €30,63 €Login to check your price MPM-90-15medical power supply 85W 15V 5.67AAvailability: Out of stockNet price:24,90 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-90-15STmedical power supply 85W 15V 5.67AOut of stock Warranty: 26,40 €32,47 €Login to check your price MPM-90-15STmedical power supply 85W 15V 5.67AAvailability: Out of stockNet price:26,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-90-24medical power supply 90W 24V 3.75AOut of stock Warranty: 24,90 €30,63 €Login to check your price MPM-90-24medical power supply 90W 24V 3.75AAvailability: Out of stockNet price:24,90 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-90-24STmedical power supply 90W 24V 3.75AOut of stock Warranty: 26,40 €32,47 €Login to check your price MPM-90-24STmedical power supply 90W 24V 3.75AAvailability: Out of stockNet price:26,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-90-48medical power supply 90W 48V 1.88AOut of stock Warranty: 24,90 €30,63 €Login to check your price MPM-90-48medical power supply 90W 48V 1.88AAvailability: Out of stockNet price:24,90 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPM-90-48STmedical power supply 90W 48V 1.88AOut of stock Warranty: 26,40 €32,47 €Login to check your price MPM-90-48STmedical power supply 90W 48V 1.88AAvailability: Out of stockNet price:26,40 €
Description
MPM-90 is a 90W high densiły and small size (87x52x29.5mm) AC/DC PCB-mount type medical grade power supply. It features the operation for a low no load power consumption less than 0.1W, a high efficiency up to 93%, Class II (no FG) double insulation, outstanding dissipation, 2~5G anti-vibration by model, high EMC performance, 4KVAC isolation, etc. The design observes IEC/EN60601-1 and ANSI/AAMI ES60601-1 version three with 2 x MOPP level and ultra-low leakage current (<100μA). It is very suitable for BF (patient contact) type medical device or relevant equipment.
Available models:
- 12V: MPM-90-12, MPM-90-12ST
- 15V: MPM-90-15, MPM-90-15ST
- 24V: MPM-90-24, MPM-90-24ST
- 48V: MPM-90-48, MPM-90-48ST
Technical Specification
MPM-90 / MPM-90ST: 80,4-90,2W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension (PCB / screw terminal) |
| MPM-90-12 | 12V, 0~6.7A | +/-2% | 120mV | 92% | 87x52x29.5mm / 109x52x33.5mm |
| MPM-90-15 | 15V, 0~5.67A | +/-2% | 150mV | 92.5% | 87x52x29.5mm / 109x52x33.5mm |
| MPM-90-24 | 24V, 0~3.75A | +/-2% | 200mV | 93% | 87x52x29.5mm / 109x52x33.5mm |
| MPM-90-48 | 48V, 0~1.88A | +/-2% | 240mV | 92% | 87x52x29.5mm / 109x52x33.5mm |
