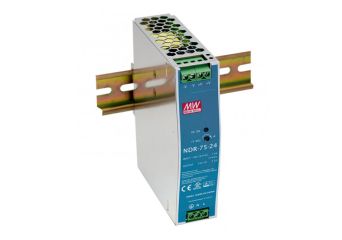

NDR-75
75W economical DIN rail power supply
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
- 100% full load burn-in test
- 3 years warranty
Prices with discounts and exact inventory can be seen after logging into the e-store.
Висока цена? Влезте в профила си и купете на по-ниска
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиNDR-75-12DIN rail power supply 75W 12V 6.3AНаличен на складГаранционен срок: €22.60€27.80Влезте, за да проверите цената си NDR-75-12DIN rail power supply 75W 12V 6.3AНаличност:Наличен на складНетна цена:€22.60 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиNDR-75-24DIN rail power supply 75W 24V 3.2AНаличен на складГаранционен срок: €22.60€27.80Влезте, за да проверите цената си NDR-75-24DIN rail power supply 75W 24V 3.2AНаличност:Наличен на складНетна цена:€22.60 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиNDR-75-48DIN rail power supply 75W 48V 1.6AНаличен на складГаранционен срок: €22.60€27.80Влезте, за да проверите цената си NDR-75-48DIN rail power supply 75W 48V 1.6AНаличност:Наличен на складНетна цена:€22.60
Описание
NDR-75 is one economical slim 75W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 32mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. NDR-75 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 89%, the entire series can operate at the ambient temperature between -20℃ and 70℃ under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) make NDR-75 a very competitive power supply solution for industrial applications.
Техническа спецификация
NDR-75 series → Manufacturer documentation (specification, certificates, others)
| Model | Efficiency | Output parameters | Output voltage adjustment | Output voltage tolerance | Rated power | Dimensions (W.xH.xD.) |
| NDR-75-12 | 85.5% | 12 V, 0~6.3 A |
12~14 V | +/-2% | 75.6 W | 32x125.2x102mm |
| NDR-75-24 | 88% | 24 V, 0~3.2 A |
24~28 V | +/-1% | 76.8 W | |
| NDR-75-48 | 89% | 48 V, 0~1.6 A |
48~55 V | +/-1% | 76.8 W |
