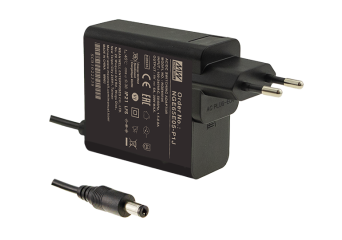

NGE65E

Medical power supply with EU plug

  • wide input voltage range 80-264VAC
  • compliance with medical standards (2xMOPP)
  • power consumption in no-load condition <0.1W
  • low leakage current <100uA
  • compliance with level VI energy efficiency
  • protection: short circuit, overvoltage and overload
  • Class II insulation
  • operating temperature -30~+70°C
  • compliance with many standards and certificates
  • fully enclosed plastic housing
  • with non-interchangeable EU plug
  • 3 years warranty

Prices with discounts and exact stock levels are visible after logging in to the e-shop.

Цена от €15.80 нетна цена

Висока цена? Влезте в профила си и купете на по-ниска

Изчерпан

Безплатна доставка от €100

Вижте 7 модела

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба
NGE65E

NGE65E

Модели

Описание

NGE65 is a highly reliable, 65W wall-mounted style single-output green adaptor series, which is compact and convenient for carry. NGE65 is a Class II power unit (no FG), accepting the input range from 80VAC to 264VAC that it can satisfy the demands for various types of electrical devices. With the working efficiency up to 91% and the extremely low no-load power consumption below 0.075W, NGE65 is compliant with the latest USA energy regulation EISA 2007/DoE, Canada NRCan,Australia and New Zealand MEPS, Korea KMEPS, EU ErP and CoC version5. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for ITE, medical, household and industrial appliance safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazard.

Техническа спецификация

Model Output Tolerance Ripple&Noise Efficiency Dimensions
NGE65E05-P1J 5V, 0~6A +/-6% 100mV 84% 62x30x65mm
NGE65E09-P1J 9V, 0~5.96A +/-5% 100mV 89% 62x30x65mm
NGE65E12-P1J 12V, 0~4.88A +/-3% 120mV 90% 62x30x65mm
NGE65E15-P1J 15V, 0~4.34A +/-3% 150mV 90% 62x30x65mm
NGE65E18-P1J 18V, 0~3.62A +/-3% 180mV 91% 62x30x65mm
NGE65E24-P1J 24V, 0~2.71A +/-2% 240mV 92% 62x30x65mm
NGE65E48-P1J 48V, 0~1.36A +/-2% 240mV 92% 62x30x65mm
