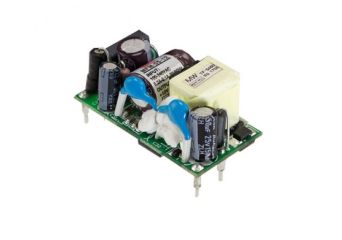

MFM-05
Open frame medical power supply: MFM-05-3.3, MFM-05-5, MFM-05-12, MFM-05-15, MFM-05-24
- 1.65"x0.88” compact size
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- Suitable for BF application with appropriate system consideration
- No load power consumption<0.075W
- Extremely low leakage current
- Wide operating temp. range -40 ~+85°C
- EMI class B for class II configuration
- Protections: Short circuit / Overload / Over voltage / Over temperature
- No minimum load required
- Typical lifetime >52K hours
High price? Log in and buy cheaper
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMFM-05-3.3medical power supply 5W 3.3V 1.25AOut of stock Warranty: 6,70 €8,24 €Login to check your price MFM-05-3.3medical power supply 5W 3.3V 1.25AAvailability: Out of stockNet price:6,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMFM-05-5medical power supply 5W 5V 1AOut of stock Warranty: 6,70 €8,24 €Login to check your price MFM-05-5medical power supply 5W 5V 1AAvailability: Out of stockNet price:6,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMFM-05-12medical power supply 5W 12V 0.42AOut of stock Warranty: 6,70 €8,24 €Login to check your price MFM-05-12medical power supply 5W 12V 0.42AAvailability: Out of stockNet price:6,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMFM-05-15medical power supply 5W 15V 0.33AOut of stock Warranty: 6,70 €8,24 €Login to check your price MFM-05-15medical power supply 5W 15V 0.33AAvailability: Out of stockNet price:6,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMFM-05-24medical power supply 5W 24V 0.23AIn stockWarranty: 6,70 €8,24 €Login to check your price MFM-05-24medical power supply 5W 24V 0.23AAvailability:In stockNet price:6,70 €
Description
MFM-05 is a 5W high densiły and small size (42*22.3*20.5mm) AC/DC on board type medical grade power supply series. It features the operation for 80Q64VAC, a low no load power consumption less than 0.075W, a high efficiency up to 82%, Class II (no FG) double insulation, outstanding dissipation, 5G anti-vibration, high EMC performance, 4KVAC isolation, etc. The design observes IEC/EN60601-1 and ANSI/AAMI ES60601-1 version three with 2xMOPP level and ultra-low leakage current (<80 μA). Ił is very suitable for BF (patient contact) type medical device or relevant equipment.
Available models:
- 3.3V: MFM-05-3.3
- 5V: MFM-05-5
- 12V: MFM-05-12
- 15V: MFM-05-15
- 24V: MFM-05-24
Technical Specification
MFM-05: 4-5W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| MFM-05-3.3 | 3.3V, 0~1.25A | +/-2.5% | 100mV | 74% | 42x22.3x20.5mm |
| MFM-05-5 | 5V, 0~1.0A | +/-2.5% | 100mV | 80% | 42x22.3x20.5mm |
| MFM-05-12 | 12V, 0~0.42A | +/-2.5% | 150mV | 80% | 42x22.3x20.5mm |
| MFM-05-15 | 15V, 0~0.33A | +/-2.5% | 150mV | 81% | 42x22.3x20.5mm |
| MFM-05-24 | 24V, 0~0.23A | +/-2.5% | 180mV | 82% | 42x22.3x20.5mm |
