PPT-125
Open frame power supply - 3 outputs: PPT-125A,PPT-125B,PPT-125C,PPT-125D
Производител: MEAN WELL
Производител: MEAN WELL
- Universal AC input / Full range
- Built-in active PFC function
- LED indicator for power on
- 100% full load burn-in test
- Compact size
Цена от 43,70 € без данък
High price? Log in and buy cheaper
In stock
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPT-125Aopen frame power supply 125W 3.3V, 5V, 12VOut of stock Warranty: 43,70 €53,75 €Login to check your price PPT-125Aopen frame power supply 125W 3.3V, 5V, 12VAvailability: Out of stockNet price:43,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPT-125Bopen frame power supply 125W 5V, 12V, -12VIn stockWarranty: 43,70 €53,75 €Login to check your price PPT-125Bopen frame power supply 125W 5V, 12V, -12VAvailability:In stockNet price:43,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPT-125Copen frame power supply 125W 5V, 15V, -15VOut of stock Warranty: 43,70 €53,75 €Login to check your price PPT-125Copen frame power supply 125W 5V, 15V, -15VAvailability: Out of stockNet price:43,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPT-125Dopen frame power supply 125W 5V, 24V, 12VOut of stock Warranty: 43,70 €53,75 €Login to check your price PPT-125Dopen frame power supply 125W 5V, 24V, 12VAvailability: Out of stockNet price:43,70 €
Description
- Universal AC input / Full range
- Built-in active PFC function
- LED indicator for power on
- 100% full load burn-in test
- Compact size

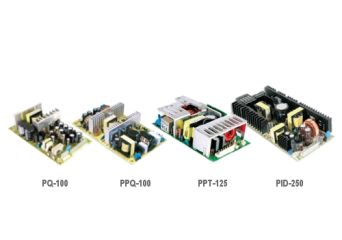

Available models:
- 12/5V: PID-250A
- 24/5V: PID-250B
- 36/5V: PID-250C
- 48/5V: PID-250D
- 3.3/5/12V: PPT-125A
- 5/12/-12V: PPT-125B
- 5/15/-15V: PPT-125C
- 5/24/12V: PPT-125D
- 5/12/-5/-12V: PQ-100B, PPQ-100B
- 5/15/-5/-15V: PQ-100C, PPQ-100C
- 5/12/24/-12V: PQ-100D, PQ-100E, PPQ-100D
- 3.3/5/12/-5V: PPQ-1003A
- 3.3/5/12/-12V: PPQ-1003B
- 3.3/5/15/-15V: PPQ-1003C
- 3.3/5/12/24V: PPQ-1003D
Technical Specification
- PPT-125: 99~126W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| PPT-125A | 3.3V, 1.0~12.5A 5V, 0.8~10A 12V, 0.05~0.63A |
+/-3% +/-5% +/-6% |
100mV 100mV 120mV |
75% | 99W | 127x76.2x34.6mm |
| PPT-125B | 5V, 1.0~14.38A 12V, 0.3~3.75A -12V, 0.05~0.63A |
+/-3% +/-5% +/-6% |
100mV 120mV 120mV |
78% | 124W | 127x76.2x34.6mm |
| PPT-125C | 5V, 1.0~13.75A 15V, 0.25~3.13A -15V, 0.05~0.63A |
+/-3% +/-5% +/-6% |
100mV 150mV 150mV |
78% | 125W | 127x76.2x34.6mm |
| PPT-125D | 5V, 1.0~8.75A 24V, 0.25~3.13A 12V, 0.5~0.063A |
+/-3% +/-5% +/-6% |
100mV 240mV 120mV |
78% | 126W | 127x76.2x34.6mm |
