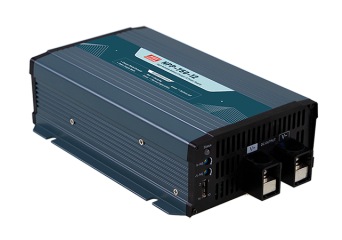

NPP-750
Battery charger with power adapter mode : NPP-750-12, NPP-750-24, NPP-750-48,
- Wide input voltage range: 90 ~ 264VAC, 127 ~ 370VDC
- Model dedicated to lead-acid batteries
- Possibility to choose the operating mode: charger / power supply
- Fan cooling
- Regulation of the output current and voltage with a potentiometer
- A wide range of acceptable operating temperatures: -30 ~ + 70 ° C
- Short-circuit, overvoltage, temperature and reverse polarity protection
- Remote on / off
- LED to indicate device status
- Compliance with EN62368, EN60335-1 / 2-29 standards
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Висока цена? Влезте в профила си и купете на по-ниска
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиNPP-750-12desktop battery charger 722W 13.8V 43AИзчерпан Гаранционен срок: 162,80 €200,24 €Влезте, за да проверите цената си NPP-750-12desktop battery charger 722W 13.8V 43AНаличност: ИзчерпанНетна цена:162,80 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиNPP-750-24desktop battery charger 756W 27.6V 22.5AИзчерпан Гаранционен срок: 162,80 €200,24 €Влезте, за да проверите цената си NPP-750-24desktop battery charger 756W 27.6V 22.5AНаличност: ИзчерпанНетна цена:162,80 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиNPP-750-48desktop battery charger 759W 55.2V 11.3AИзчерпан Гаранционен срок: 162,80 €200,24 €Влезте, за да проверите цената си NPP-750-48desktop battery charger 759W 55.2V 11.3AНаличност: ИзчерпанНетна цена:162,80 €
Описание
NPP-750 is a series of 722.4 ~ 759.4W chargers dedicated to lead-acid batteries. The device can operate in the charger mode or as an ordinary power supply. The mode is selected by connecting or disconnecting the connector on the housing. The output current and voltage are regulated by a potentiometer on the housing. The output voltage can be adjusted in the following ranges (depending on the model): 10.5 ~ 21V, 21 ~ 42V or 42 ~ 80VDC.
The device is overvoltage and temperature protected. The acceptable operating temperature range is: -30 ~ + 70 ° C.
Application examples:
- Vehicle battery charging
- Power backup systems
- Power supply for industrial automation devices
Техническа спецификация
- NPP-750: Battery charger with power adapter mode 722.4~759.4W - SPECIFICATION
| Model | Output | Efficiency | Plug | Dimensions |
| NPP-750-12 | 12V, 43A | 92% | screw terminal | 230x158x67mm |
| NPP-750-24 | 24V, 22.5A | 93% | screw terminal | 230x158x67mm |
| NPP-750-48 | 48V, 11.3A | 93% | screw terminal | 230x158x67mm |
