Производител: MEAN WELL
- input voltage 88-264VAC, 124-370VDC
- protections: short circuit, overvoltage and overload protection
- protection against battery discharge
- ability to adjust the output voltage in the range of +/- 10%
- cooling with open air circulation
- working temperature from -10 ~ + 60 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от 31,20 € без данък
High price? Log in and buy cheaper
In stock
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAD-55Apower supply 55W 13.8V 4A, 13.4V 0.23AIn stockWarranty: 31,20 €38,38 €Login to check your price AD-55Apower supply 55W 13.8V 4A, 13.4V 0.23AAvailability:In stockNet price:31,20 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAD-55Bpower supply 55W 27.6V 2A, 26.5V 0.16AIn stockWarranty: 31,20 €38,38 €Login to check your price AD-55Bpower supply 55W 27.6V 2A, 26.5V 0.16AAvailability:In stockNet price:31,20 €
Description

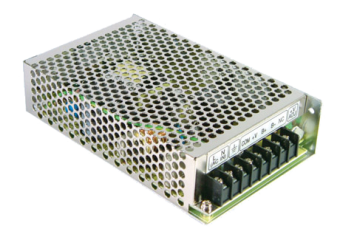

AD, ADS, ADD series power supplies are designed to work in monitoring systems, access control, alarm systems, etc. AD and ADD models with an external battery can work as UPS power supplies. Discharge protection avoids over-discharging the battery.
Technical Specification
-
AD-55: 51~54W DETAILS
Model Output Tolerance Ripple & noise Efficiency Max power Dimension AD-55A 13.8V, 0~4.0A
13.4V, 0~0.23A+/-1%
(charging)100mV 71% 51W 159x97x38mm AD-55B 27.6V, 0~2.0A
26.5V, 0~0.16A+/-1%
(charging)100mV 74% 54W 159x97x38mm
