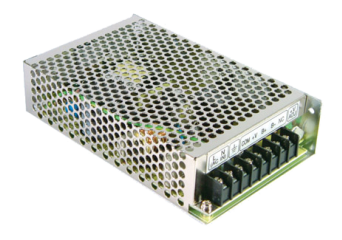

ADS-55
Enclosed power supply with UPS function: ADS-5512, ADS-5524
- input voltage 88-264VAC, 124-370VDC
- protections: short circuit, overvoltage and overload protection
- ability to adjust the output voltage in the range of +/- 10%
- cooling with open air circulation (70% of power)
- 100% power with fan cooling
- working temperature from -10 ~ + 60 ° C
- 5V / 3A output for connecting a fan
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от €33.40 нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиADS-5512power supply 55W 12V 4A, 5V 4AИзчерпан Гаранционен срок: €33.40€41.08Влезте, за да проверите цената си ADS-5512power supply 55W 12V 4A, 5V 4AНаличност: ИзчерпанНетна цена:€33.40 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиADS-5524power supply 55W 24V 2.5A, 5V 4AИзчерпан Гаранционен срок: €33.40€41.08Влезте, за да проверите цената си ADS-5524power supply 55W 24V 2.5A, 5V 4AНаличност: ИзчерпанНетна цена:€33.40
Описание
AD, ADS, ADD series power supplies are designed to work in monitoring systems, access control, alarm systems, etc. AD and ADD models with an external battery can work as UPS power supplies. Discharge protection avoids over-discharging the battery. The ADD power supply has an additional 5V output for connecting an external fan.
Техническа спецификация
-
ADS-55: 51~58W DETAILS
Model Output Tolerance Ripple & noise Efficiency Max power Dimension ADS-5512 12V, 0~4.0A
5V, 0~4.0A+/-1%
+/-3%100mV
100mV74% 51W 159x97x38mm ADS-5524 24V, 0~2.5A
5V, 0~4.0A+/-1%
+/-3%100mV
100mV74% 58W 159x97x38mm
