- Very wide input voltage range 250~1500 VDC
- Operating temperature from -40 to +80°C
- Case width 85.5mm
- Output voltage regulation +20%
- Free air cooling
- Can be mounted on a DIN TS-35/7.5 or 15 rail
- Protections: short circuit, overload, overvoltage, temperature, reverse polarity protection
- I/O isolation 4kVDC
- DC Relay OK
- Possibility of installation at an altitude of up to 5000m
- 3 years warranty
Prices with discounts and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
DDRH-240
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDRH-240-12DC/DC converter 240W 250~1500V-12V 16.7AIn stockWarranty: 74,90 €92,13 €Login to check your price DDRH-240-12DC/DC converter 240W 250~1500V-12V 16.7AAvailability:In stockNet price:74,90 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDRH-240-24DC/DC converter 240W 250~1500V-24V 10AOut of stock Warranty: 74,90 €92,13 €Login to check your price DDRH-240-24DC/DC converter 240W 250~1500V-24V 10AAvailability: Out of stockNet price:74,90 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDRH-240-32DC/DC converter 240W 250~1500V-32V 7.5AOut of stock Warranty: 74,90 €92,13 €Login to check your price DDRH-240-32DC/DC converter 240W 250~1500V-32V 7.5AAvailability: Out of stockNet price:74,90 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDRH-240-48DC/DC converter 240W 250~1500V-48V 5AOut of stock Warranty: 74,90 €92,13 €Login to check your price DDRH-240-48DC/DC converter 240W 250~1500V-48V 5AAvailability: Out of stockNet price:74,90 €
Description

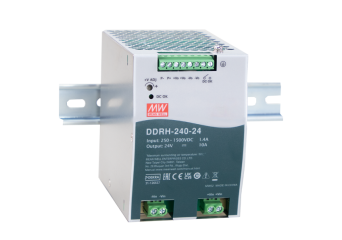

The DDRH-240 is a MEAN WELL DC/DC converter with a wide input voltage range: 250~1500 Vdc. The device is dedicated to photovoltaic and wind installations, and other applications where conversion from high DC to low voltage is required. The converter is designed to be mounted on a DIN TS-35/7.5 or 15 rail. The device has the following protections: short-circuit, overload, overvoltage, temperature, reverse polarity protection. Signaling of the output voltage by means of a DC OK relay.
Technical Specification
- DDRH-240: DIN rail DC/DC converter, wide voltage range 200W~240W (SPECIFICATION)
| Model | Input | Output | Ripple&Noise | Efficiency | Dimensions |
| DDRH-240-12 | 250~1500Vdc | 12V, 0~16.7A | 120mV | 88% | 85.5x125.2x129.2mm |
| DDRH-240-24 | 150~1500Vdc | 24V, 0~10A | 240mV | 90% | 85.5x125.2x129.2mm |
| DDRH-240-32 | 150~1500Vdc | 32V, 0~7.5A | 240mV | 90% | 85.5x125.2x129.2mm |
| DDRH-240-48 | 150~1500Vdc | 48V, 0~5A | 300mV | 90% | 85.5x125.2x129.2mm |
