Производител: MEAN WELL
- Compliance with medical standards 1xMOPP / 2xMOOP acc. To ES60601-1
- Permissible operating temperatures from -40 to + 85 ° C
- Low leakage current <2uA
- Short circuit protection
- Short-circuit withstand strength I / O 6kVDC / 4.2kVAC
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Description
A series of single-output converters for through hole and surface mounting is designed for use in electronics. A wide range of input voltages, models with different power and output voltages ensure great flexibility of applications. High quality, reliability, durability and long service life are the basic advantages of MEAN WELL inverters.
Technical Specification

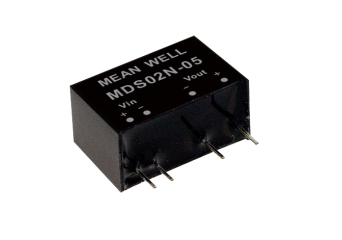

- MDS02: 1-output medical DC / DC converter 2W 2W SPECIFICATION
| Model | Inuput | Output | Ripple&Noise | Dimensions |
| MDS02L-05 | 5V+/-10% | 5VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDS02L-12 | 5V+/-10% | 12VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDS02L-15 | 5V+/-10% | 15VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDD02L-05 | 5V+/-10% | 5VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDD02L-09 | 5V+/-10% | 9VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDD02L-12 | 5V+/-10% | 12VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDD02L-15 | 5V+/-10% | 15VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDS02M-05 | 12V+/-10% | 5VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDS02M-12 | 12V+/-10% | 12VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDS02M-15 | 12V+/-10% | 15VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDD02M-05 | 12V+/-10% | 5VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDD02M-09 | 12V+/-10% | 9VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDD02M-12 | 12V+/-10% | 12VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDD02M-15 | 12V+/-10% | 15VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDS02N-05 | 24V+/-10% | 5VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDS02N-12 | 24V+/-10% | 12VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDS02N-15 | 24V+/-10% | 15VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDD02N-05 | 24V+/-10% | 5VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDD02N-09 | 24V+/-10% | 9VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDD02N-12 | 24V+/-10% | 12VDC | 75mVp-p | 19.5x9.8x12.5mm |
| MDD02N-15 | 24V+/-10% | 15VDC | 75mVp-p | 19.5x9.8x12.5mm |
