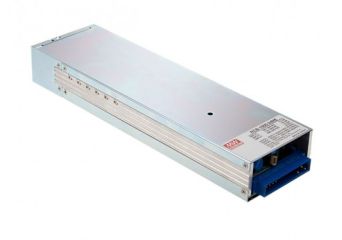

RCB-1600
Rack battery charger: RCB-1600-12, RCB-1600-24, RCB-1600-48
- Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
- Built-in default 3 stage charging curves and programmable curve
- Built-in I2C interface, PMBus protocol (Optional CANBus protocol)
- Output voltage and current programmable
- Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
- Built-in active PFC function
- Forced air cooling by built-in DC fan
- Built-in OR-ing FET, support hot swap (hot plug)
- Active current sharing up to 8000W for one 19” rack shelf
- Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
- Optional conformal coating
Висока цена? Влезте в профила си и купете на по-ниска
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
RCB-1600
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRCB-1600-12battery charger 1600W 14.4V 100AИзчерпан Гаранционен срок: 428,50 €527,06 €Влезте, за да проверите цената си RCB-1600-12battery charger 1600W 14.4V 100AНаличност: ИзчерпанНетна цена:428,50 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRCB-1600-24battery charger 1600W 28.8V 55AИзчерпан Гаранционен срок: 428,50 €527,06 €Влезте, за да проверите цената си RCB-1600-24battery charger 1600W 28.8V 55AНаличност: ИзчерпанНетна цена:428,50 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRCB-1600-48battery charger 1600W 57.6V 27.5AИзчерпан Гаранционен срок: 428,50 €527,06 €Влезте, за да проверите цената си RCB-1600-48battery charger 1600W 57.6V 27.5AНаличност: ИзчерпанНетна цена:428,50 €
Аксесоари
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity Добавиcase 1U for RACK 19" with IEC inletИзчерпан Гаранционен срок: 632,40 €777,85 €Влезте, за да проверите цената си case 1U for RACK 19" with IEC inletНаличност: ИзчерпанНетна цена:632,40 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity Добавиcase 1U for RACK 19" with terminal blockИзчерпан Гаранционен срок: 632,40 €777,85 €Влезте, за да проверите цената си case 1U for RACK 19" with terminal blockНаличност: ИзчерпанНетна цена:632,40 €
Описание
RCB-1600 series is a single output 1600W AC/DC charger with 1U low profile (41 mm). It is an intelligent charger with embedded charging curves which are programmable. Users are also able to adjust the charging voltage and current via the built-in potentiometer, output programmable functions, PMBus, or CANBus to charge different types of batteries, such as lead-acid batteries and li-ion batteries. Various protection mechanisms as well as the temperature compensation function are provided to assure the normal and safe operations. The rack-mountable attribute allows ROB-1600 to perfectly suit the charging, backup or constant current source applications exploiting the rack architecture or central management.
Available models:
- 14.4V: RCB-1600-12
- 28.8V: RCB-1600-24
- 57.6V: RCB-1600-48
Техническа спецификация
RCB-1600: 1600W active PFC DETAILS
| Model | Output | Suggested capacity | Efficiency | Dimension |
| RCB-1600-12 | 14.4V, 100A | 330~1000Ah | 87% | 300x85x41mm |
| RCB-1600-24 | 28.8V, 55A | 180~550Ah | 90.5% | 300x85x41mm |
| RCB-1600-48 | 57.6V, 27.5A | 90~270Ah | 93% | 300x85x41mm |
