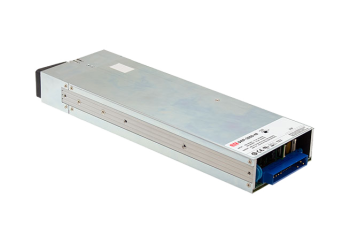

DRP-3200

DRP-3200 is a single-output 3200W AC / DC power supply dedicated to use in rack cabinets. The power supply is available in two versions of the output voltage: 24V and 48V and a wide range of input voltage: 90 ~ 264VAC, 127 ~ 370VDC.

The device has extensive remote communication functions. Through the PMBus interface, it is possible to remotely change the output current and voltage, and remotely turn on and off the module. PMBus communication also enables constant preview and monitoring of the device's operating status, output and input parameters. The operating status of the device is also shown by an LED diode on the housing.

Application examples

Thanks to the possibility of connecting up to 4 modules into one system with a total power of 12800 W and connecting two systems in parallel (25600 W), the device can be used as a charging station for electric vehicles. The ability to connect individual modules (DBR-3200-24, DBR-3200-48, DRP-3200-24, DRP-3200-48, DHP-1U) allows you to create a centrally controlled DC power supply system for various industrial processes. In addition to the above-mentioned applications, MEAN WELL DRP-3200 will also be used, for example, in powering large telecommunications exchanges and transmitters, and (thanks to the remote control functions) in redundant power supply systems.
