Производител: MEAN WELL
- Support 1+1 and N+1 redundancy system
- 2 channels input and 1 output
- Suitable for redundancy operation of 5V/12V/24V/48V system
- Output current up to 40A
- Cooling by free air convection
- -40~+80ºC ultra-wide operating temperature (>+60ºC derating)
- Built-in 2 channels DC OK signal and alarm relay contact
Цена от 32,20 € без данък
High price? Log in and buy cheaper
In stock
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddERDN40-12power supply redundancy module 12V 40AIn stockWarranty: 32,20 €39,61 €Login to check your price ERDN40-12power supply redundancy module 12V 40AAvailability:In stockNet price:32,20 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddERDN40-24power supply redundancy module 24V 40AOut of stock Warranty: 32,20 €39,61 €Login to check your price ERDN40-24power supply redundancy module 24V 40AAvailability: Out of stockNet price:32,20 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddERDN40-48power supply redundancy module 48V 40AOut of stock Warranty: 32,20 €39,61 €Login to check your price ERDN40-48power supply redundancy module 48V 40AAvailability: Out of stockNet price:32,20 €
Description

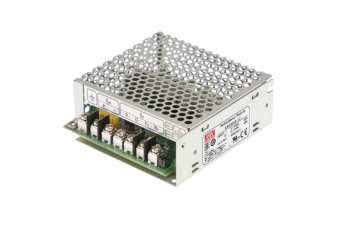

The ERDN40 series is a 40A redundancy module that can be used with a power supply to improve overall system operation reliability. Product key features include:12V/24V/48V input voltage for selection, support N+1 and 1+1 redundancy systems, built-in two rails DC input contacts and single output. The MOSFET technology implemented can reduce heat loss and reduce the voltage difference between the input and output voltages, built-in 2 channels DC OK relay contacts for monitoring output status, ultra-wide operating temperature of -40 to +80ºC.
Available models:
- 12V: ERDN40-12
- 24V: ERDN40-24
- 48V: ERDN40-48
Technical Specification
ERDN40: 40A DETAILS
| Model | Output | Reverse voltage (max) | Input current (max) | Dimension |
| ERDN40 | 12,24,48V, 20A | 60V | 40A | 97x99x36mm |
