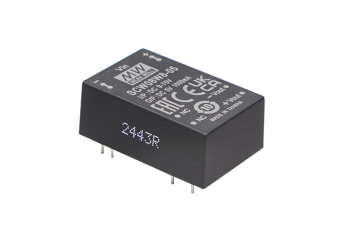

SCW08W8
8W single output DC/DC converter
- DIP24 package with industry standard pinout
- 8:1 (9-75 VDC) ultra-wide input range
- Operating temperature range -40~+95℃
- No minimum load required
- Comply to BS EN/EN55032 radiated Class A without additional components
- High efficiency up to 86%
- Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- Remote ON/OFF control (Optional)
- 3 kVDC I/O isolation
- 3 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
SCW08W8
Описание
SCW08W8 and DCW08W8 series are 8W isolated and regulated module type DC-DC converter with DIP24 package. It features international standard pins, a high efficiency up to 86%, wide working temperature range -40~+90℃, 3KVdc I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit protection, 8:1(9~75V) ultra-wide input range, and various output voltage, 3.3V, 5V, 9V, 12V, 15V for single output and ±5V, ±12V, ±15V for dual outputs, which are suitable for all kinds of systems, Such as industrial control, telecommunication field, distributed power architecture, and so on.
Техническа спецификация
SCW08W8: 8W single output DC/DC converter → Link to manufacturer documentation (specification, reports, certificates, others)
| Model | Input voltage | Input current (no load) |
Output voltage | Output current | Output ripple & noise | Efficiency | Dimension (LxWxH) |
|---|---|---|---|---|---|---|---|
| SCW08W8-03 | 9-75 VDC | 10 mA | 3.3 VDC | 2400 mA | 100 mVpp | 82% | 31.8 x 20.3 x 12.2 mm |
| SCW08W8-05 | 9-75 VDC | 10 mA | 5 VDC | 1600 mA | 100 mVpp | 84% | 31.8 x 20.3 x 12.2 mm |
| SCW08W8-09 | 9-75 VDC | 10 mA | 9 VDC | 889 mA | 100 mVpp | 85% | 31.8 x 20.3 x 12.2 mm |
| SCW08W8-12 | 9-75 VDC | 10 mA | 12 VDC | 667 mA | 100 mVpp | 86% | 31.8 x 20.3 x 12.2 mm |
| SCW08W8-15 | 9-75 VDC | 10 mA | 15 VDC | 533 mA | 100 mVpp | 85% | 31.8 x 20.3 x 12.2 mm |
