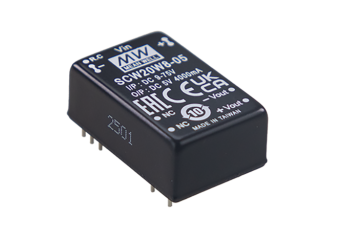

SCW20W8
20W single output DC/DC converter
- DIP24 package with industry standard pinout
- 8:1 (9-75 VDC) ultra-wide input range
- Operating temperature range -40~+95℃
- No minimum load required
- Comply to BS EN/EN55032 radiated Class A without additional components
- High efficiency up to 88%
- Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- Remote ON/OFF control
- 3 kVDC I/O isolation
- 3 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
SCW20W8
Описание
SCW20W8 and DCW20W8 series are 20W isolated and regulated module type DC-DC converter with DIP24 package. It features:
- international standard pins,
- a high efficiency up to 88%,
- wide working temperature range -40~+95℃,
- 3KVdc I/P-O/P isolation voltage,
- compliance to BS EN/EN55032 radiated Class A without additional components,
- continuous-mode short circuit protection,
- 8:1(9~75V) ultra-wide input range,
- various output voltage for single output: 3.3V, 5V, 12V, 15V, 24V,
- various output voltage for dual output: ±12V, ±15V.
The converters are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Техническа спецификация
SCW20W8: 20W single output DC/DC converter → Link to manufacturer documentation (specification, reports, certificates, others)
| Model | Input voltage | Input current (no load) |
Output voltage | Output current | Output ripple & noise | Efficiency | Dimension (LxWxH) |
|---|---|---|---|---|---|---|---|
| SCW20W8-03 | 9-75 VDC | 10 mA | 3.3 VDC | 4000 mA | 100 mVpp | 83% | 31.8 x 20.3 x 12.2 mm |
| SCW20W8-05 | 9-75 VDC | 10 mA | 5 VDC | 4000 mA | 100 mVpp | 85% | 31.8 x 20.3 x 12.2 mm |
| SCW20W8-12 | 9-75 VDC | 10 mA | 12 VDC | 1666 mA | 1% of output voltage | 86% | 31.8 x 20.3 x 12.2 mm |
| SCW20W8-15 | 9-75 VDC | 10 mA | 15 VDC | 1333 mA | 1% of output voltage | 87% | 31.8 x 20.3 x 12.2 mm |
| SCW20W8-24 | 9-75 VDC | 10 mA | 24 VDC | 833 mA | 1% of output voltage | 88% | 31.8 x 20.3 x 12.2 mm |
