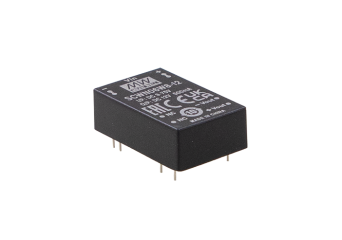

SCWN06W8
6W single output DC/DC converter
- DIP24 package with industry standard pinout
- 8:1 (9-75 VDC) ultra-wide input range
- Operating temperature range -40~+95℃
- No minimum load required
- Comply to BS EN/EN55032 radiated Class B without additional components
- High efficiency up to 86%
- Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- Remote ON/OFF control (Optional)
- 3 kVDC I/O isolation
- 3 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
SCWN06W8
Описание
SCWN06W8 and DCWN06W8 series are 6W isolated and regulated module type DC-DC converter with DIP24 package. It features international standard pins, a high efficiency up to 86%, wide working temperature range -40~+95℃, 3KVdc I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class B without additional components, continuous-mode short circuit protection, 8:1(9~75V) ultra-wide input range, and various output voltage, 3.3V, 5V, 12V, 15V for single output and ±5V, ±12V, ±15V for dual outputs, which are suitable for all kinds of systems, Such as industrial control, telecommunication field, distributed power architecture, and so on.
Техническа спецификация
SCWN06W8: 6W single output DC/DC converter → Link to manufacturer documentation (specification, reports, certificates, others)
| Model | Input voltage | Input current (no load) |
Output voltage | Output current | Output ripple & noise | Efficiency | Dimension (LxWxH) |
|---|---|---|---|---|---|---|---|
| SCWN06W8-03 | 9-75 VDC | 5 mA | 3.3 VDC | 1200 mA | 100 mVpp | 75% | 31.8 x 20.3 x 10.2 mm |
| SCWN06W8-05 | 9-75 VDC | 5 mA | 5 VDC | 1000 mA | 100 mVpp | 79% | 31.8 x 20.3 x 10.2 mm |
| SCWN06W8-12 | 9-75 VDC | 5 mA | 12 VDC | 500 mA | 100 mVpp | 85% | 31.8 x 20.3 x 10.2 mm |
| SCWN06W8-15 | 9-75 VDC | 6 mA | 15 VDC | 400 mA | 100 mVpp | 86% | 31.8 x 20.3 x 10.2 mm |
