Series HBG-60W

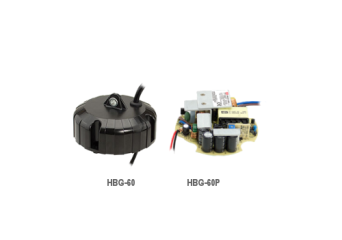

Circular shape LED power supply: HBG-60

  • Constant Current mode output
  • Circular plastic housing with class II design
  • Built-in active PFC function
  • Class 2 power unit
  • Typical lifetime>50000 hours
Цена от 18,90 € нетна цена

Висока цена? Влезте в профила си и купете на по-ниска

Изчерпан

Безплатна доставка от €100

Вижте 6 модела

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба
Series HBG-60W

Series HBG-60W

Модели

Описание

HBG-60 series is a AC/DC LED driver featuring the circular shape design with the plasticenclosure. It operates from 90~295VAC and offers the constant current output models withdifferent rated current between 1050mA and 2100mA. Thanks to the high efficiency up to 90%,with the fanless design, the entire series is able to operate for -40°C ~ +85°C case temperatureunder free air convection.

Available models:

  • 1050mA: HBG-60-1050
  • 1400mA: HBG-60-1400
  • 2100mA: HBG-60-2100

Техническа спецификация

HBG-60: 57.75~60.9W DETAILS

Model Output Tolerance Efficiency Dimension
HBG-60-1050 37~55V, 1.05 A +/-5% 90% 110x60.5mm
HBG-60-1400 28~43V, 1.4 A +/-5% 89% 110x60.5mm
HBG-60-2100 19~29V, 2.1A +/-5% 89% 110x60.5mm
