MPD-120, MPT-120, MPQ-120, MPT-200 were phased-out by the manufacturer. |
Series MPD/T 25-200W 2,3,4-outputs -medical

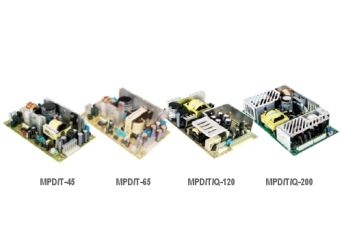

Open Frame medical power supply 2,3,4 - outputs: MPD-45, MPD-65, MPD-120, MPD-200, MPT-45, MPT-65, MPT-120, MPT-200, MPQ-120, MPQ-200
Производител: MEAN WELL
Производител: MEAN WELL
- Universal AC input / Full range
- Low leakage current
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Medical safety approved (2 x MOPP between primary to secondary)
- 100% full load burn-in test
Цена от 76,30 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Series MPD/T 25-200W 2,3,4-outputs -medical
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPQ-200Bopen frame power supply 200W 5V,12V,-5V,-12VOut of stock Warranty: 76,30 €93,85 €Login to check your price MPQ-200Bopen frame power supply 200W 5V,12V,-5V,-12VAvailability: Out of stockNet price:76,30 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPQ-200Copen frame power supply 200W 5V,15V,-5V,-15VOut of stock Warranty: 76,30 €93,85 €Login to check your price MPQ-200Copen frame power supply 200W 5V,15V,-5V,-15VAvailability: Out of stockNet price:76,30 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPQ-200Dopen frame power supply 200W 5V,24V,12V,-12VOut of stock Warranty: 76,30 €93,85 €Login to check your price MPQ-200Dopen frame power supply 200W 5V,24V,12V,-12VAvailability: Out of stockNet price:76,30 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPQ-200Fopen frame power supply 200W 5V,24V,15V,-15VOut of stock Warranty: 76,30 €93,85 €Login to check your price MPQ-200Fopen frame power supply 200W 5V,24V,15V,-15VAvailability: Out of stockNet price:76,30 €
Description
- Universal AC input / Full range
- Low leakage current
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Medical safety approved (2 x MOPP between primary to secondary)
- 100% full load burn-in test
Available models:
- 5/12V: MPD-45A, MPD-65A, MPD-120A, MPD-200A
- 5/24V: MPD-45B, MPD-65B, MPD-120B, MPD-200B
- 5/12/-5V: MPT-45A, MPT-65A, MPT-120A, MPT-200A
- 5/12/-12V: MPT-45B, MPT-65B, MPT-120B, MPT-200B
- 5/15/-15V: MPT-45C, MPT-65C, MPT-120C, MPT-200C
- 5/24/12V: MPT-120D
- 5/12/-5/-12V: MPQ-120B, MPQ-200B
- 5/15/-5/-15V: MPQ-120C, MPQ-200C
- 5/12/24/-12V: MPQ-120D, MPQ-200D
- 5/12/15/24V: MPQ-120E, MPQ-200E
Technical Specification
MPD-45: 40~45W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| MPD-45A | 5V, 0.4~5.0A 12V, 0.2~2.5A |
+/-4% +/-7% |
60mV 120mV |
76% | 40W | 127x76x28mm |
| MPD-45B | 5V, 0.4~5.0A 24V, 0.2~1.8A |
+/-4% +/-7% |
60mV 150mV |
78% | 45W | 127x76x28mm |
MPT-45: 41~44W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| MPT-45A | 5V, 0.4~5.0A 12V, 0.2~2.5A -5V, 0.0~0.5A |
+/-4% +/-7% +/-5% |
60mV 120mV 60mV |
73% | 41W | 127x76x28mm |
| MPT-45B | 5V, 0.4~5.0A 12V, 0.2~2.5A -12V, 0.0~0.5A |
+/-4% +/-7% +/-5% |
60mV 120mV 100mV |
75% | 43W | 127x76x28mm |
| MPT-45C | 5V, 0.4~5.0A 15V, 0.2~2.3A -15V, 0.0~0.5A |
+/-4% +/-7% +/-5% |
60mV 120mV 100mV |
75% | 44W | 127x76x28mm |
MPD-65: 61~66W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| MPD-65A | 5V, 0.4~7.0A 12V, 0.2~3.2A |
+/-4% +/-7% |
60mV 150mV |
75% | 61W | 127x76x42mm |
| MPD-65B | 5V, 0.4~6.0A 24V, 0.2~2.6A |
+/-4% +/-7% |
60mV 150mV |
78% | 66W | 127x76x42mm |
MPT-65: 60~68W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| MPT-65A | 5V, 0.4~7.0A 12V, 0.2~3.2A -5V, 0.0~0.7A |
+/-4% +10%,-7% +/-5% |
60mV 120mV 60mV |
74% | 60W | 127x76x42mm |
| MPT-65B | 5V, 0.4~7.0A 12V, 0.2~3.2A -12V, 0.0~0.7A |
+/-4% +10%,-7% +/-5% |
60mV 160mV 100mV |
74% | 64W | 127x76x42mm |
| MPT-65C | 5V, 0.4~7.0A 15V, 0.2~2.6A -15V, 0.0~0.7A |
+/-4% +10%,-7% +/-5% |
60mV 180mV 100mV |
74% | 65W | 127x76x42mm |
MPD-120: 110~120W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| MPD-120A | 5V, 2.0~12A 12V, 0.5~6.0A |
+/-2% +/-7% |
80mV 120mV |
75% | 110W | 177.8x108x35.5mm |
| MPD-120B | 5V, 2.0~12A 24V, 0.3~3.2A |
+/-2% +/-8% |
80mV 250mV |
76% | 120W | 177.8x108x35.5mm |
MPT-120: 110~119W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| MPT-120A | 5V, 2.0~12A 12V, 0.4~5.8A -5V, 0.0~1.0A |
+/-2% +8%,-6% +/-5% |
80mV 120mV 80mV |
72% | 111W | 177.8x108x35.5mm |
| MPT-120B | 5V, 2.0~12A 12V, 0.4~5.3A -12V, 0.0~1.0A |
+/-2% +/-6% +/-5% |
80mV 120mV 180mV |
73% | 110W | 177.8x108x35.5mm |
| MPT-120C | 5V, 2.0~11A 15V, 0.4~4.4A -15V, 0.0~1.0A |
+/-2% +6%,-7% +/-5% |
80mV 150mV 180mV |
72% | 119W | 177.8x108x35.5mm |
| MPT-120D | 5V, 2.0~12A 24V, 0.4~2.16A 12V, 0.0~1.0A |
+/-2% +8%,-6% +/-5% |
80mV 300mV 120mV |
74% | 110W | 177.8x108x35.5mm |
MPQ-120: 109~120W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| MPQ-120B | 5V, 2.0~11A 12V, 0.5~5.0A -5V, 0.0~1.0A -12V, 0.0~1.0A |
+/-2% +/-6% +/-5% +/-5% |
80mV 120mV 80mV 80mV |
71% | 111W | 177.8x108x35.5mm |
| MPQ-120C | 5V, 2.0~11A 15V, 0.5~3.8A -5V, 0.0~1.0A -15V, 0.0~1.0A |
+/-2% +6%,-7% +/-5% +/-5% |
80mV 150mV 80mV 80mV |
71% | 110W | 177.8x108x35.5mm |
| MPQ-120D | 5V, 2.0~11A 12V, 0.2~1.1A 24V, 0.3~2.3A -12V, 0.0~1.0A |
+/-2% +8%, -6% +/-8% +/-5% |
80mV 150mV 300mV 180mV |
74% | 120W | 177.8x108x35.5mm |
| MPQ-120E | 5V, 2.0~11A 12V, 0.5~3.3A 15V, 0.0~1.0A 24V, 0.0~1.0A |
+/-2% +/-6% +/-8% +/-5% |
80mV 120mV 80mV 80mV |
73% | 109W | 177.8x108x35.5mm |
MPD-200: 196W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| MPD-200A | 5V, 4.0~24A 12V, 0.8~9.6A |
+/-2% +8%,-5% |
80mV 120mV |
82% | 196W | 177.8x107.2x35.5mm |
| MPD-200B | 5V, 4.0~24A 24V, 0.4~4.8A |
+/-2% +/-6.5% |
80mV 180mV |
83% | 196W | 177.8x107.2x35.5mm |
MPT-200: 196~201W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| MPT-200A | 5V, 4.0~24A 12V, 0.4~5.8A -5V, 0.0~1.0A |
+/-2% +8%,-6% +/-5% |
80mV 120mV 80mV |
72% | 111W | 177.8x107.2x35.5mm |
| MPT-200B | 5V, 4.0~24A 12V, 0.6~7.2A -12V, 0.0~2.4A |
+/-2% +/-8% +/-5% |
80mV 120mV 80mV |
80% | 196W | 177.8x107.2x35.5mm |
| MPT-200C | 5V, 4.0~24A 15V, 0.5~5.6A -15V, 0.0~2.4A |
+/-2% +/-8% +/-5% |
80mV 150mV 80mV |
80% | 201W | 177.8x107.2x35.5mm |
| MPT-200D | 5V, 4.0~24A 24V, 0.3~3.6A 12V, 0.0~2.4A |
+/-2% +/-8% +/-5% |
80mV 180mV 80mV |
81% | 196W | 177.8x107.2x35.5mm |
MPQ-200: 190~200W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| MPQ-200B | 5V, 3.0~18A 12V, 0.7~8.4A -5V, 0.0~2.4A -12V, 0.0~2.4A |
+/-2% +/-8% +/-5% +/-5% |
80mV 120mV 80mV 80mV |
78% | 193W | 177.8x107.2x35.5mm |
| MPQ-200C | 5V, 3.0~18A 15V, 0.5~6.0A -5V, 0.0~2.4A -15V, 0.0~2.4A |
+/-2% +/-6% +/-5% +/-5% |
80mV 150mV 80mV 80mV |
78% | 190W | 177.8x107.2x35.5mm |
| MPQ-200D | 5V, 3.0~18A 24V, 0.3~3.6A 12V, 0.0~2.4A -12V, 0.0~2.4A |
+/-2% +/-8% +/-5% +/-5% |
80mV 150mV 300mV 180mV |
79% | 195W | 177.8x107.2x35.5mm |
| MPQ-200F | 5V, 3.0~18A 24V, 0.3~3.3A 15V, 0.0~2.4A -15V, 0.0~2.4A |
+/-2% +/-8% +/-5% +/-5% |
80mV 180mV 80mV 80mV |
81% | 200W | 177.8x107.2x35.5mm |
