Series RCP 2000-18000W
Rack 19 power system: RCP-2000
- Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
- Built-in active PFC function
- High efficiency up to 92%
- Forced air cooling by built-in DC fan
- Output voltage programmable
- Built-in OR-ing FET, support hot swap (hot plug)
- Active current sharing up to 6000W for one 19” rack shelf
- Built-in 12C interface, PMBus protocol
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Optional conformal coating
Висока цена? Влезте в профила си и купете на по-ниска
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Series RCP 2000-18000W
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRCP-2000-12RACK 19" power supply 1200W 12V 100AИзчерпан Гаранционен срок: 560,40 €689,29 €Влезте, за да проверите цената си RCP-2000-12RACK 19" power supply 1200W 12V 100AНаличност: ИзчерпанНетна цена:560,40 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRCP-2000-24RACK 19" power supply 2000W 24V 80AИзчерпан Гаранционен срок: 560,40 €689,29 €Влезте, за да проверите цената си RCP-2000-24RACK 19" power supply 2000W 24V 80AНаличност: ИзчерпанНетна цена:560,40 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRCP-2000-48RACK 19" power supply 2000W 48V 42AИзчерпан Гаранционен срок: 560,40 €689,29 €Влезте, за да проверите цената си RCP-2000-48RACK 19" power supply 2000W 48V 42AНаличност: ИзчерпанНетна цена:560,40 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRKP-1UIcase 1U with IEC inlet to RACK 19"Изчерпан Гаранционен срок: 437,00 €537,51 €Влезте, за да проверите цената си RKP-1UIcase 1U with IEC inlet to RACK 19"Наличност: ИзчерпанНетна цена:437,00 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRKP-1UTcase 1U with terminal block to RACK 19"Изчерпан Гаранционен срок: 437,00 €537,51 €Влезте, за да проверите цената си RKP-1UTcase 1U with terminal block to RACK 19"Наличност: ИзчерпанНетна цена:437,00 €
Описание

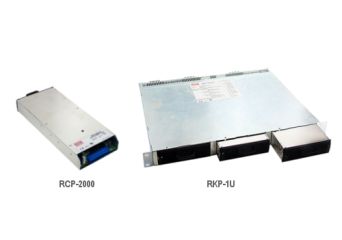

RCP-2000 is a 2KW single output rack mountable front end AC/DC power supply with a 1U low profile and a high power densiły up to 25W/inch3. This series operates for 90~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in DC fan with fan speed control, working for the temperature up to 70°C. RCP-2000 provides vast design flexibility by equipping various built-in functions such as the PMBus communication protocol, output programming, active current sharing (up to 18000W via three 19” rack shelves, RKP-1U), remote control, auxiliary power, alarm signal, external control/monitor via the control model RKP-CMU1, etc. Maximum number that can be monitored by master controller in communication shall be 9 power supplies.
Available models:
- 12V: RCP-2000-12
- 24V: RCP-2000-24
- 48V: RCP-2000-48
Техническа спецификация
RCP-2000: 1200~2016W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| RCP-2000-12 | 12V, 0~100A | +/-1% | 150mV | 86% | 295x127x41mm |
| RCP-2000-24 | 24V, 0~80A | +/-1% | 200mV | 90,5% | 295x127x41mm |
| RCP-2000-48 | 48V, 0~42A | +/-1% | 300mV | 92% | 295x127x41mm |
RKP-1U: Rack system for RCP-2000 DETAILS
| Model | Description | Dimension |
| RKP-1UI | 1U rack system with AC inlet | 350.8x483.6x44mm |
| RKP-1UT | 1U rack system with terminal block | 350.8x483.6x44mm |
