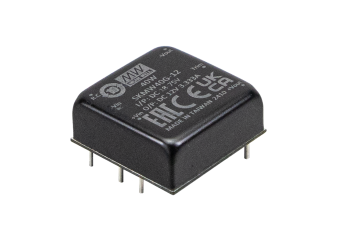

SKMW40
40W single output DC/DC converter
- DIP 1"x1" package with industry standard pinout
- 4:1 ultrawide input range
- Operating temperature range -40 ~ +80℃
- No minimum load required
- Comply to BS EN/EN55032 Class A/B with additional components
- High efficiency up to 91%
- Protections: Short circuit (Continuous) / Overload / Over voltage / Over temperature / Input under voltage
- 2KVDC I/O isolation
- Remote ON/OFF control and Triming output (±10%)
- 3 years warranty
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Описание
SKMW40 series are 40W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 91%, wide working temperature range -40~+80℃, 2KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 Class A/B with additional components, continuous-mode short circuit, overload, over voltage, over temperature, input under voltage protection, remote ON/OFF and trimmable output voltage etc. The models account for different input voltage 9~36V and 18~75V 4:1 ultrawide input range, and various output voltage, 3.3V/5V/12V/15V/24V for single output , which are suitable for all kinds of systems, Such as industrial control, telecommunication field, distributed power architecture, and so on.
Техническа спецификация
- SKMW40: 40W single output DC/DC converter → Manufacturer documentation (specification, certificate, others)
| Model | Input voltage | Output parameters | Efficiency | Dimension (LxWxH) |
| SKMW40F-03 SKMW40F-05 SKMW40F-12 SKMW40F-15 SKMW40F-24 |
9~36 VDC typ. 24 VDC |
3.3 VDC, 10000 mA 5 VDC, 8000 mA 12 VDC, 3333 mA 15 VDC, 2667 mA 24 VDC, 1667 mA |
86% 88% 89% 91% 89% |
25.4x25.4x10 mm (1x1x0.39 inch) |
| SKMW40G-03 SKMW40G-05 SKMW40G-12 SKMW40G-15 SKMW40G-24 |
18~75 VDC typ. 48 VDC |
3.3 VDC, 10000 mA 5 VDC, 8000 mA 12 VDC, 3333 mA 15 VDC, 2667 mA 24 VDC, 1667 mA |
85% 88% 89% 88% 89% |
25.4x25.4x10 mm (1x1x0.39 inch) |
