KSC-01L
KNX LINE Coupler
- KNX TP Line coupler/Repeater
- Telegram filtering function
- Long messages support up to 240 byte APDU
- Trace the subline traffic
- Diagnostic functions
- Manual function
- 3 year warranty
Висока цена? Влезте в профила си и купете на по-ниска
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиKSC-01LKNX-LINE CouplerНаличен на складГаранционен срок: 229,60 €282,41 €Влезте, за да проверите цената си KSC-01LKNX-LINE CouplerНаличност:Наличен на складНетна цена:229,60 €
Описание

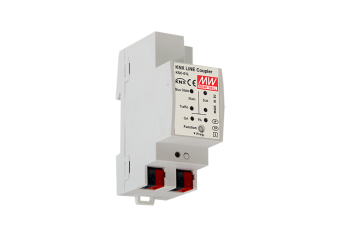

The MEAN WELL KSC-01L KNX linear coupler enables the creation of a two-way connection between two KNX lines or areas, while ensuring complete galvanic isolation. The filter function helps to reduce the exchange of telegrams per line. Filtering of telegrams is carried out according to the device's position in the topology and according to the programmed table for group communication. For a detailed diagnosis, all modes and states of the device are signaled by LEDs on the housing.
KSC-01L can also be used as a KNX repeater to extend the range of the line. The telegrams are then not filtered, but repeated from to the next line.
Техническа спецификация
KSC-01L - KNX LINE Coupler - SPECIFICATION
