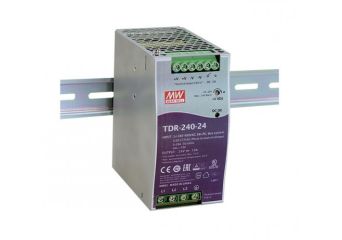

TDR-240
Three phase DIN rail power supply: TDR-240-24, TDR-240-48
- Three-Phase 340~550VAC wide range input (Dual phase operation possible)
- 63mm slim width
- Built-in passive PFC function compliance to EN61000-3-2
- High efficiency 92% and low power dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Full power between -30~+60ºC
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL61010(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- DC OK relay contact
Висока цена? Влезте в профила си и купете на по-ниска
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
TDR-240
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиTDR-240-24DIN rail power supply 3-phase 240W 24VНаличен на складГаранционен срок: 75,70 €93,11 €Влезте, за да проверите цената си TDR-240-24DIN rail power supply 3-phase 240W 24VНаличност:Наличен на складНетна цена:75,70 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиTDR-240-48DIN rail power supply 3-phase 240W 48VНаличен на складГаранционен срок: 75,70 €93,11 €Влезте, за да проверите цената си TDR-240-48DIN rail power supply 3-phase 240W 48VНаличност:Наличен на складНетна цена:75,70 €
Описание
TDR-240 is one economical slim 240W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 63mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 3ψ 340VAC to 550VAC (Dual Phase operation possible) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. TDR-240 is designed with metal housing that enhances the units power dissipation. With working efficiency up to 92%, the entire series can operate at the ambient temperature between -30℃ and 70℃ under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL61 010-1, UL6101 0-2-201, EN61558-1, EN61558-2-16, EAC TP TC 004 approved, and etc.) make TDR-240 a very competitive power supply solution for industrial applications.
Available models:
- 24V: TDR-240-24
- 48V: TDR-240-482
Техническа спецификация
TDR-240: 240W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| TDR-240-24 | 24V, 0~10A | +/-1% | 100mV | 92% | 63x125.2x113.5mm |
| TDR-240-48 | 48V, 0~5A | +/-1% | 120mV | 92% | 63x125.2x113.5mm |
