- Three-Phase 340~550VAC wide range input (Dual phase operation possible)
- Width only 85.5mm
- Built-in active PFC function compliance to EN61000-3-2
- High efficiency 93% and low power dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Optional DC OK relay contact
Висока цена? Влезте в профила си и купете на по-ниска
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба

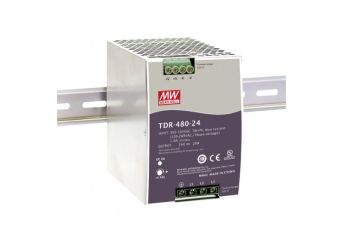

TDR-480
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиTDR-480-24DIN rail power supply 3-phase 480W 24VНаличен на складГаранционен срок: €115,30€141,82Влезте, за да проверите цената си TDR-480-24DIN rail power supply 3-phase 480W 24VНаличност:Наличен на складНетна цена:€115,30 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиTDR-480-48DIN rail power supply 3-phase 480W 48VНаличен на складГаранционен срок: €115,30€141,82Влезте, за да проверите цената си TDR-480-48DIN rail power supply 3-phase 480W 48VНаличност:Наличен на складНетна цена:€115,30
Описание
TDR-480 is one economical slim 480W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 85.5mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 3ψ 340VAC to 550VAC (Dual Phase operation possible) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. TDR-480 is designed with metal housing that enhances the uniťs power dissipation. With working efficiency up to 93%, the entire series can operate at the ambient temperature between -20ºC and 70ºC under air convection. It is equipped with constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, IEC 62368-1 CB approved by UL.) make T DR-480 a very competitive power supply solution for industrial applications.
Available models:
- 24V: TDR-480-24
- 48V: TDR-480-48
Техническа спецификация
TDR-480: 480W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| TDR-480-24 | 24V, 0~20A | +/-1% | 150mV | 92% | 85.5x125.2x128.5mm |
| TDR-480-48 | 48V, 0~10A | +/-1% | 240mV | 92% | 85.5x125.2x128.5mm |
