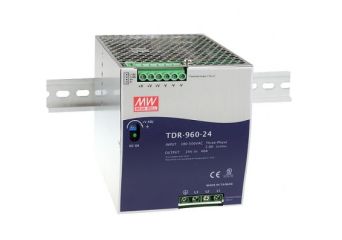

TDR-960
Three phase DIN rail power supply: TDR-960-24, TDR-960-48
- Three-Phase 340~550VAC wide range input (Dual phase operation possible)
- Width only 110 mm
- Built-in active PFC function compliance to EN61000-3-2
- High efficiency 94.5% and low power dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Current sharing up to 3840W(3+1)
- Built-in DC OK relay contact
- 100% full load burn-in test
Цена от 233,10 € нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
Наличен на склад
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
TDR-960
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиTDR-960-24DIN rail power supply 3-phase 960W 24VНаличен на складГаранционен срок: 233,10 €286,71 €Влезте, за да проверите цената си TDR-960-24DIN rail power supply 3-phase 960W 24VНаличност:Наличен на складНетна цена:233,10 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиTDR-960-48DIN rail power supply 3-phase 960W 48VНаличен на складГаранционен срок: 233,10 €286,71 €Влезте, за да проверите цената си TDR-960-48DIN rail power supply 3-phase 960W 48VНаличност:Наличен на складНетна цена:233,10 €
Описание
- Three-Phase 340~550VAC wide range input (Dual phase operation possible)
- Width only 110 mm
- Built-in active PFC function compliance to EN61000-3-2
- High efficiency 94.5% and low power dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Current sharing up to 3840W(3+1)
- Built-in DC OK relay contact
- 100% full load burn-in test
Available models:
- 24V: TDR-960-24
- 48V: TDR-960-48
Техническа спецификация
TDR-960: 960W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| TDR-960-24 | 24V, 0~40A | +/-1% | 180mV | 94% | 110x125.2x150mm |
| TDR-960-48 | 48V, 0~20A | +/-1% | 250mV | 94.5% | 110x125.2x150mm |
