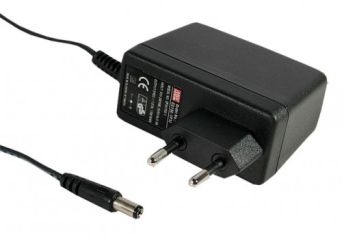

GS15E
Plug-in power supply
- wide input voltage range of 90-264VAC
- no-load power consumption <0.3W
- compliant with ErP 2 and EISA 2007
- protections: short circuit, overvoltage and overload protection
- class II insulation
- working temperature 0 ~ + 50 ° C
- compliance with many standards and certificates
- fully enclosed plastic housing
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от €16.90 нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиGS15E-2P1Jwall plug-in power supply EU 15W 9V 1.66AНаличен на складГаранционен срок: €16.90€20.79Влезте, за да проверите цената си GS15E-2P1Jwall plug-in power supply EU 15W 9V 1.66AНаличност:Наличен на складНетна цена:€16.90 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиGS15E-6P1Jwall plug-in power supply EU 15W 24V 0.62AНаличен на складГаранционен срок: €16.90€20.79Влезте, за да проверите цената си GS15E-6P1Jwall plug-in power supply EU 15W 24V 0.62AНаличност:Наличен на складНетна цена:€16.90
Useful products
Описание
MEAN WELL GS15E is characterized by very good parameters, compliance with new standards and low power consumption in no-load condition. 15 W models have the following output voltages: 5,7.5,9,12,15,18,24,48 vdc.
Техническа спецификация
- GS15E: Plug-in power supply 12~15W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Plug | Dimensions |
| GS15E-1P1J | 5V, 0~2.4A | +/-5% | 50mV | 75% | P1J 2.1Øx5.5Øx11mm | 34x71x50mm |
| GS15E-11P1J | 7.5V, 0~1.6A | +/-5% | 80mV | 78% | P1J 2.1Øx5.5Øx11mm | 34x71x50mm |
| GS15E-2P1J | 9V, 0~1.66A | +/-5% | 80mV | 80% | P1J 2.1Øx5.5Øx11mm | 34x71x50mm |
| GS15E-3P1J | 12V, 0~1.25A | +/-3% | 80mV | 80% | P1J 2.1Øx5.5Øx11mm | 34x71x50mm |
| GS15E-4P1J | 15V, 0~1A | +/-3% | 100mV | 80% | P1J 2.1Øx5.5Øx11mm | 34x71x50mm |
| GS15E-5P1J | 18V, 0~0.83A | +/-3% | 120mV | 81% | P1J 2.1Øx5.5Øx11mm | 34x71x50mm |
| GS15E-6P1J | 24V, 0~0.62A | +/-2% | 150mV | 83% | P1J 2.1Øx5.5Øx11mm | 34x71x50mm |
| GS15E-8P1J | 48V, 0~0.31A | +/-2% | 240mV | 85% | P1J 2.1Øx5.5Øx11mm | 34x71x50mm |
