P1J DC adapters
Цена от 0,50 € нетна цена
При поръчка до 15:00 ч., пратката ще бъде изпратена същия ден Наличен на склад
SGA25E

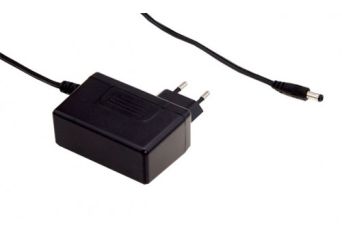

Plug-in power supply
- wide input voltage range of 90-264VAC
- output voltage 5 / 7.5 / 9/12/15/18/24/48 VDC
- no-load power consumption <0.075W
- compliant with EU ErP standard
- protections: short circuit, overvoltage and overload protection
- working temperature -20 ~ + 60 ° C
- compliance with many standards and certificates
- fully enclosed plastic housing made in 2nd class of insulation
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употребаUseful products
Описание
MEAN WELL SGA25E power supply is a 25W plug-in power supply and several versions of output voltages: 5,7,9,12,15,18,24,48 VDC.
Техническа спецификация
- SGA25E: Plug-in power supply 20-25W SPECIFICATION
| Model | Output | Tolerance | Riplle&Noise | Efficiency | Plug | Dimensions |
| SGA25E05-P1J | 5V, 0~4A | +/-5% | 50mV | 82% | 2.1Øx5.5Øx11mm | 75.5x32x47.5mm |
| SGA25E07-P1J | 7.5V, 0~2.93A | +/-5% | 50mV | 85.5% | 2.1Øx5.5Øx11mm | 75.5x32x47.5mm |
| SGA25E09-P1J | 9V, 0~2.77A | +/-5% | 80mV | 86% | 2.1Øx5.5Øx11mm | 75.5x32x47.5mm |
| SGA25E12-P1J | 12V, 0~2.08A | +/-3% | 80mV | 86% | 2.1Øx5.5Øx11mm | 75.5x32x47.5mm |
| SGA25E15-P1J | 15V, 0~1.66A | +/-3% | 80mV | 86.5% | 2.1Øx5.5Øx11mm | 75.5x32x47.5mm |
| SGA25E18-P1J | 18V, 0~1.38A | +/-3% | 80mV | 86.5% | 2.1Øx5.5Øx11mm | 75.5x32x47.5mm |
| SGA25E24-P1J | 24V, 0~1.04A | +/-2% | 80mV | 87% | 2.1Øx5.5Øx11mm | 75.5x32x47.5mm |
| SGA25E48-P1J | 48V, 0~0.52A | +/-2% | 120mV | 88.5% | 2.1Øx5.5Øx11mm | 75.5x32x47.5mm |
