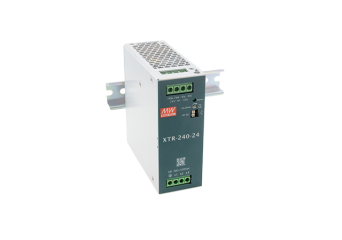

XTR-240
240W 3 phase DIN power supply
- 3-Phase 320~600 VAC wide range input, 600~700 VAC surge input for 1 sec. occasionally (Dual phase operation possible)
- High efficiency up to 93.5% and no load power dissipation <2.5W
- 48 mm Ultra slim width
- Over voltage category III (OVC III)
- Global certificates in multi-fields (ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, C1D2 HazLoc approved
- 150% Peak Power capability
- Built-in constant current limiting circuit
- Current sharing up to 960 W (3+1) for parallel use (By request)
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Fanless design, cooling by free air convection
- -40~+85℃ wide range operation temperature (>+60℃ derating)
- Operating altitude up to 5000 meters
- Built-in DC OK relay contact
- Ultra low inrush current < 10A
- Built-in ORing FET (By request)
- Tool free terminal block (LA type)
- Conformal coating
- Can be installed on DIN Rail TS-35/7.5 or 15
- 5 years warranty
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
XTR-240
Описание
The XTR-240 series is a 240W AC/DC 3-phase 320~600 VAC input ultra slim industrial high-reliability DIN rail power. Key features of this series include a narrow 48 mm casing, optimizing system installation space, it boasts a maximum efficiency of 93.5% and a low standby power consumption <2.5W for energy savings and carbon reduction. It provides constant current with up to 150% peak power; fanless design, ultra-wide operating temperature range of -40 to +85℃ (up to +60℃ at full load); OVC III compliance; parallel functioncapability up to 960W(By request); ultra-low inrush current of <10A; built-in DC OK and ORing FET(optional); internal PCB coating offers basic moisture and dust protection, and it has multiple terminal blocks for selection. With comprehensive protection functions, complete safety certifications, and a 5-years warranty, the XTR-240 series is a compact, high-performance, and highly reliable DIN rail power supply.
Техническа спецификация
- XTR-240: 240W 3 phase DIN power supply → Manufacturer documentation (specification, certificates, others)
| Model | Input voltage (3PH) | Output parameters | Output voltage adjustment | Rated power | Efficiency | Power Factor | Dimension (WxHxD) |
| XTR-240-12 | 320~600 VAC, 450~800 VDC |
12 V, 0~15 A |
12~15 V | 180 W | 88.7% | ≥0.53 / 400 VAC ≥0.52 / 500 VAC |
48x125.2x125mm |
| XTR-240-24 | 24 V, 0~10 A |
24~29 V | 240 W | 92.5% | |||
| XTR-240-36 | 36 V, 0~6.66 A |
36~42 V | 239.8 W | 92.5% | |||
| XTR-240-48 | 48 V, 0~5 A |
48~55 V | 240 W | 93.5% |
