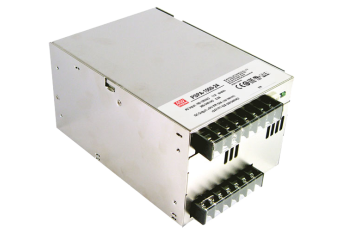

PSPA-1000
ENCLOSED POWER SUPPLY with Parallel Function: PSPA-1000-12, PSPA-1000-15, PSPA-1000-24, PSPA-1000-48
Производител: MEAN WELL
Производител: MEAN WELL
- Universal AC input / Full range
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Forced air cooling by built-in DC fan
- Current sharing up to 4000W(3+1)
- With DC OK Signal output
- Built-in remote ON-OFF control
- Built-in remote sense function
Цена от 181,70 € без данък
High price? Log in and buy cheaper
In stock
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
PSPA-1000
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSPA-1000-12switching power supply 1000W 12V 80AIn stockWarranty: 181,70 €223,49 €Login to check your price PSPA-1000-12switching power supply 1000W 12V 80AAvailability:In stockNet price:181,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSPA-1000-15switching power supply 1000W 15V 64AOut of stock Warranty: 181,70 €223,49 €Login to check your price PSPA-1000-15switching power supply 1000W 15V 64AAvailability: Out of stockNet price:181,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSPA-1000-24switching power supply 1000W 24V 42AOut of stock Warranty: 181,70 €223,49 €Login to check your price PSPA-1000-24switching power supply 1000W 24V 42AAvailability: Out of stockNet price:181,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPSPA-1000-48switching power supply 1000W 48V 21AOut of stock Warranty: 181,70 €223,49 €Login to check your price PSPA-1000-48switching power supply 1000W 48V 21AAvailability: Out of stockNet price:181,70 €
Description
PSPA-1000 series is a 1 KW single output enclosed type AC/DC power supply. This series operates from 90~264VAC input voltage and offers models with different rated voltage ranging between 12V and 48V. Thanks to high efficiency up to 94% and built-in fan, the entire series is able to work for -20°C +70°C ambient temperature. PSPA-1000 is equipped with various built-in functions, such as current sharing, remote ON-OFF control and remote sense, providing great design flexibility for different types of applications.
Avaialble models:
- 12V: PSPA-1000-12
- 15V: PSPA-1000-15
- 24V: PSPA-1000-24
- 48V: PSPA-1000-48
Technical Specification
PSPA-1000: 960-1008W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| PSPA-1000-12 | 12V, 0~80A | +/-2% | 150mV | 92% | 170x120x93mm |
| PSPA-1000-15 | 15V, 0~64A | +/-1.5% | 150mV | 93% | 170x120x93mm |
| PSPA-1000-24 | 24V, 0~42A | +/-1% | 200mV | 93,5% | 170x120x93mm |
| PSPA-1000-48 | 48V, 0~21A | +/-1% | 250mV | 94% | 170x120x93mm |
