Производител: MEAN WELL
- input voltage 85-264VAC, 120-370VDC
- high output voltage (115/230/380VDC)
- possibility of cooling by water conduction (with WHS-656 plate)
- built-in active PFC function
- protections: short-circuit, overvoltage, overload, thermal
- built-in PMBus communication protocol
- low and narrow profile 60 mm
- remote ON/OFF function
- DC signal OK
- working temperature -30~+70°C
- compliance with many standards and certificates
- efficiency up to 96%
- 5 years warranty
Prices with discounts and exact stock levels are visible after logging in to the e-shop.
Цена от 942,60 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
PHP-3500-HV
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPHP-3500-115switching power supply 3500W 115V 26.3AOut of stock Warranty: 942,60 €1 159,40 €Login to check your price PHP-3500-115switching power supply 3500W 115V 26.3AAvailability: Out of stockNet price:942,60 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPHP-3500-230switching power supply 3500W 230V 16.1AOut of stock Warranty: 942,60 €1 159,40 €Login to check your price PHP-3500-230switching power supply 3500W 230V 16.1AAvailability: Out of stockNet price:942,60 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPHP-3500-380switching power supply 3500W 380V 10.5AOut of stock Warranty: 942,60 €1 159,40 €Login to check your price PHP-3500-380switching power supply 3500W 380V 10.5AAvailability: Out of stockNet price:942,60 €
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddWHS-656cooling plate for PHP-3500Out of stock Warranty: 162,80 €200,24 €Login to check your price WHS-656cooling plate for PHP-3500Availability: Out of stockNet price:162,80 €
Description

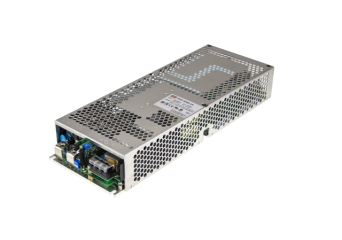

The MEAN WELL PHP-3500-HV power supply is a fanless model with a power of 3500W. To cool it, you can use an aluminum plate, a water-cooled stand (using the WHS-656 adapter), or external fans. PHP-3500-HV has high output voltage: 115, 230, 380VDC. Features a 60mm low profile metal chassis. The power supply can be controlled using the PMBus protocol. The device has many functions, such as: remote on/off, DC OK signal, or the ability to set the output voltage and DC limits on the output.
Technical Specification
- PHP-3500-HV: enclosed power supply with high output voltage (SPECIFICATION)
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| PHP-3500-115 | 115V, 0~26.3A | +/-1% | 1150mV | 95% | 380x141,4x60mm |
| PHP-3500-230 | 230V, 0~16.1A | +/-1% | 2300mV | 95.5% | 380x141,4x60mm |
| PHP-3500-380 | 380V, 0~10.5A | +/-1% | 3800mV | 96% | 380x141,4x60mm |
