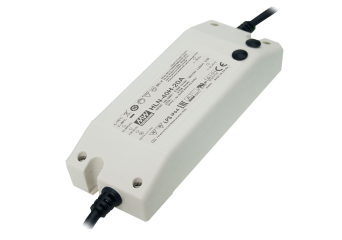

HLN-40H
Power supplies for LED lighting systems with PFC: HLN-40H-12A, HLN-40H-15A, HLN-40H-20A, HLN-40H-24A, HLN-40H-30A, HLN-40H-36A, HLN-40H-42A, HLN-40H-48A, HLN-40H-54A
Производител: MEAN WELL
Производител: MEAN WELL
- supply voltage: 90-305VAC
- built-in dc current limitation
- class II insulation
- built-in active PFC function PF> 0.9
- short-circuit, overvoltage, overcurrent and thermal protection
- cooling with open air circulation
- IP64 housing
- working temperature -40 ~ + 50 ° C
- efficiency up to 91%
- 3in1 1-10V dimming function, PWM, resistor (model B)
- compliance with a number of standards and certificates
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от 37,70 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHLN-40H-54ALED driver 40W 54V 0.75AOut of stock Warranty: 37,70 €46,37 €Login to check your price HLN-40H-54ALED driver 40W 54V 0.75AAvailability: Out of stockNet price:37,70 €
Description
HLP series power supplies have a built-in active PFC function. Their narrow plastic housing with a high class of tightness allows for use in conditions with high humidity and high dustiness. They have the ability to adjust the voltage and output currents using internal potentiometers, or the 3 in 1 dimming function (1-10V, PWM, resistor) in B models. They are intended for powering lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc.
Technical Specification
- HLN-40H: Power supplies for LED lighting systems with PFC 40W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Cable length | Dimensions |
| HLN-40H-12 | 12V, 0~3.33A | +/-2.5% | 150mV | 86.5% | 300mm | 161x61.5x35mm |
| HLN-40H-15 | 15V, 0~2.67A | +/-2% | 150mV | 86.5% | 300mm | 161x61.5x35mm |
| HLN-40H-20 | 20V, 0~2A | +/-1% | 150mV | 87.5% | 300mm | 161x61.5x35mm |
| HLN-40H-24 | 24V, 0~1.67A | +/-1% | 150mV | 88% | 300mm | 161x61.5x35mm |
| HLN-40H-30 | 30V, 0~1.34A | +/-1% | 200mV | 88,5% | 300mm | 161x61.5x35mm |
| HLN-40H-36 | 36V, 0~1.12A | +/-1% | 200mV | 88.5% | 300mm | 161x61.5x35mm |
| HLN-40H-42 | 42V, 0~0.96A | +/-1% | 200mV | 88.5% | 300mm | 161x61.5x35mm |
| HLN-40H-48 | 48V, 0~0.84A | +/-1% | 300mV | 89% | 300mm | 161x61.5x35mm |
| HLN-40H-54 | 54V, 0~0.75A | +/-1% | 300mV | 89% | 300mm | 161x61.5x35mm |
