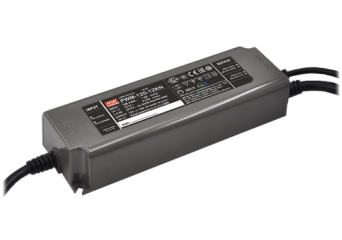

PWM-200KN
KNX power supply for LED lighting systems
- constant voltage PWM output with the possibility of changing the frequency up to 4kHz
- plastic casing with insulation class II
- Data Secure protocol
- active PFC system
- no-load power consumption <0.5W
- integrated KNX interface
- short-circuit, overload, overvoltage and thermal protection
- typical life time> 50,000 hours
- working temperature from -40 to + 85 ° C
- efficiency up to 90%
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Висока цена? Влезте в профила си и купете на по-ниска
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
PWM-200KN
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиPWM-200-12KNLED driver 180W 12V 15AНаличен на складГаранционен срок: 71,10 €87,45 €Влезте, за да проверите цената си PWM-200-12KNLED driver 180W 12V 15AНаличност:Наличен на складНетна цена:71,10 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиPWM-200-24KNLED driver 200W 24V 8.3AНаличен на складГаранционен срок: 71,10 €87,45 €Влезте, за да проверите цената си PWM-200-24KNLED driver 200W 24V 8.3AНаличност:Наличен на складНетна цена:71,10 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиPWM-200-36KNLED driver 200W 36V 5.55AИзчерпан Гаранционен срок: 71,10 €87,45 €Влезте, за да проверите цената си PWM-200-36KNLED driver 200W 36V 5.55AНаличност: ИзчерпанНетна цена:71,10 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиPWM-200-48KNLED driver 200W 48V 4.17AНаличен на складГаранционен срок: 71,10 €87,45 €Влезте, за да проверите цената си PWM-200-48KNLED driver 200W 48V 4.17AНаличност:Наличен на складНетна цена:71,10 €
Описание
The PWM series voltage power supplies, unlike the standard power supplies, are equipped with a KNX interface. The models of this series have a PWM type output signal, which allows them to be used with various types of LED strips, ensuring the appropriate color temperature. These models are characterized by a narrow plastic housing with a high class of tightness, which allows for use in conditions of increased humidity. Wires with a length of 60 cm are led out of the housing. The power supplies provide a constant output voltage regardless of the load. They are designed to power a wide range of devices, including lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc.
Presentation of the PWM series power supplies in the KNX version
Техническа спецификация
- PWM-200-KN : KNX power supply for LED lighting systems 180~200W SPECIFICATION
| Model | Output | Tolerance | Efficiency | Cable lenght | Dimensions |
| PWM-200-12KN | 12V, 0~15A | +/-4% | 92% | 300mm | 195x68x39.5mm |
| PWM-200-24KN | 24V, 0~8.3A | +/-4% | 93% | 300mm | 195x68x39.5mm |
| PWM-200-36KN | 36V, 0~5.55A | +/-2% | 94% | 300mm | 195x68x39.5mm |
| PWM-200-48KN | 48V, 0~4.17A | +/-1% | 94% | 300mm | 195x68x39.5mm |
