Производител: MEAN WELL
- supply voltage: 180-528VAC; 254-747VDC
- hermetic metal housing in accordance with the IP67 / IP65 standard
- built-in active PFC function
- constant current at the output
- short-circuit, over-voltage and thermal protection
- regulation of the output voltage with a potentiometer in version A
- regulation of the output current with a potentiometer
- 3in1 dimming function in B version models (0 ~ 10VDC, PWM, resistor)
- cooling with open air circulation
- working temperature -40 ~ + 70 ° C
- efficiency up to 93%
- compliance with a number of standards and certificates
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от 231,40 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба

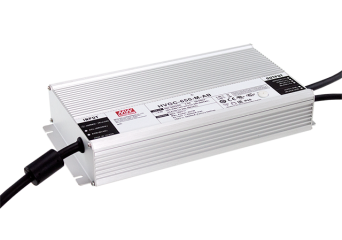

HVGC-650
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHVGC-650-L-ABLED driver 650W 92.8~232V 2.8~3.5AOut of stock Warranty: 231,40 €284,62 €Login to check your price HVGC-650-L-ABLED driver 650W 92.8~232V 2.8~3.5AAvailability: Out of stockNet price:231,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHVGC-650-M-ABLED driver 650W 62~155V 4.2~5.25AOut of stock Warranty: 231,40 €284,62 €Login to check your price HVGC-650-M-ABLED driver 650W 62~155V 4.2~5.25AAvailability: Out of stockNet price:231,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHVGC-650-H-ABLED driver 650W 46.4~116V 5.6~7AOut of stock Warranty: 231,40 €284,62 €Login to check your price HVGC-650-H-ABLED driver 650W 46.4~116V 5.6~7AAvailability: Out of stockNet price:231,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHVGC-650-U-ABLED driver 650W 24~58V 11.2~14AOut of stock Warranty: 231,40 €284,62 €Login to check your price HVGC-650-U-ABLED driver 650W 24~58V 11.2~14AAvailability: Out of stockNet price:231,40 €
Description
The HVGC series current power supplies have an extended input voltage range, up to 480VAC (single-phase powered). They are available in versions, ie A, B and AB (with cable outlet) or version D (with a built-in dimming timer - optional). The models have a 3 in 1 dimming function. The whole series has a built-in active PFC function. They are designed to power a wide range of devices, including lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc.
Technical Specification
- HVGC-650 LED power supplies with high input voltage 650W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Cable length | Dimensions |
| HVGC-650-L | 92.8~232V, 2800mA | +/-5% | +/-5% Io | 95% | 300mm | 280x144x48.5mm |
| HVGC-650-M | 62~155V, 4200mA | +/-5% | +/-5% Io | 95% | 300mm | 280x144x48.5mm |
| HVGC-650-H | 46.4~116V, 5600mA | +/-5% | +/-5% Io | 95% | 300mm | 280x144x48.5mm |
| HVGC-650-U | 24~58V, 11200mA | +/-5% | +/-5% Io | 95.5% | 300mm | 280x144x48.5mm |
