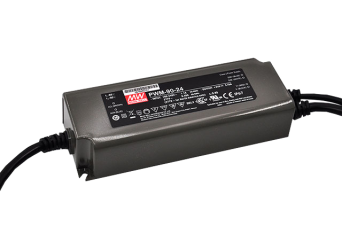

PWM-90
Power supplies for LED lighting systems with dimming PWM function: PWM-90-12, PWM-90-24, PWM-90-36, PWM-90-48,
- wide range of supply voltage: 90 ~ 305VAC, 127 ~ 431VDC
- hermetic plastic housing in accordance with the IP67 standard
- constant output voltage regardless of load
- available version with DALI interface (PWM-90-DA)
- available version with KNX interface (PWM-60-KN / PWM-120-KN)
- short-circuit, overload, overvoltage and thermal protection
- no-load power consumption <0.5W
- active PFC system
- class II insulation 3 in 1 dimming function (0 ~ 10VDC, PWM, resistance)
- cooling with open air circulation
- working temperature from -40 to + 70 ° C
- compliance with a number of standards and certificates
- efficiency up to 90%
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-90-12LED driver 90W 12V 7.5AIn stockWarranty: 36,30 €44,65 €Login to check your price PWM-90-12LED driver 90W 12V 7.5AAvailability:In stockNet price:36,30 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-90-24LED driver 90W 24V 3.75AIn stockWarranty: 36,30 €44,65 €Login to check your price PWM-90-24LED driver 90W 24V 3.75AAvailability:In stockNet price:36,30 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-90-36LED driver 90W 36V 2.5AOut of stock Warranty: 36,30 €44,65 €Login to check your price PWM-90-36LED driver 90W 36V 2.5AAvailability: Out of stockNet price:36,30 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-90-48LED driver 90W 48V 1.88AOut of stock Warranty: 36,30 €44,65 €Login to check your price PWM-90-48LED driver 90W 48V 1.88AAvailability: Out of stockNet price:36,30 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-90-12DALED driver 90W 12V 7.5A DALIIn stockWarranty: 41,10 €50,55 €Login to check your price PWM-90-12DALED driver 90W 12V 7.5A DALIAvailability:In stockNet price:41,10 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-90-24DALED driver 90W 24V 3.75A DALIIn stockWarranty: 41,10 €50,55 €Login to check your price PWM-90-24DALED driver 90W 24V 3.75A DALIAvailability:In stockNet price:41,10 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-90-12DA2LED driver 90W 12V 7.5A DALI2In stockWarranty: 41,10 €50,55 €Login to check your price PWM-90-12DA2LED driver 90W 12V 7.5A DALI2Availability:In stockNet price:41,10 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-90-24DA2LED driver 90W 24V 3.75A DALI2In stockWarranty: 41,10 €50,55 €Login to check your price PWM-90-24DA2LED driver 90W 24V 3.75A DALI2Availability:In stockNet price:41,10 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-90-48DA2LED driver 90W 48V 1.88AOut of stock Warranty: 36,30 €44,65 €Login to check your price PWM-90-48DA2LED driver 90W 48V 1.88AAvailability: Out of stockNet price:36,30 €
Description
The PWM series voltage power supplies, unlike standard power supplies, have a PWM type output signal, which allows them to be used with various types of LED strips, ensuring the appropriate color temperature. These models are characterized by a narrow plastic housing with a high class of tightness, which allows for use in conditions of increased humidity. Wires with a length of 60 cm are led out of the housing. The power supplies provide a constant output voltage regardless of the load. The PWM models also have a dimming function that allows you to adjust the current efficiency with a voltage of 1-10VDC, the width of the pulse filling (PWM), or an external resistor. They are designed to power a wide range of devices, including lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc.
Technical Specification
- PWM-90 : Power supplies for LED lighting systems with PWM dimming SPECIFICATION
| Model | Output | Tolerance | Efficiency | Wire length | Dimensions |
| PWM-90-12 | 12V, 0~7.5A | +/-4% | 89% | 300mm | 171x63x37.5mm |
| PWM-90-24 | 24V, 0~3.75A | +/-3% | 90.5% | 300mm | 171x63x37.5mm |
| PWM-90-36 | 36V, 0~2.5A | +/-2% | 90.5% | 300mm | 171x63x37.5mm |
| PWM-90-48 | 48V, 0~1.88A | +/-1% | 90.5% | 300mm | 171x63x37.5mm |
