HBGC-300

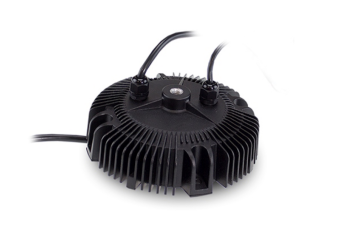

Constant power LED driver, round shape: HBGC-300-L, HBGC-300-M, HBGC-300-H
- Wide input voltage range of 90 ~ 305VAC
- Built-in PFC function
- Admissible working temperature: -40 ~ + 80 ° C
- Round housing with IP67
- Optional: 3 in 1 dimming function (0 ~ 10VDC, PWM, resistance)
- Optional: DALI2 interface
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop
High price? Log in and buy cheaper
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
HBGC-300
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHBGC-300-L-ALED driver 300W 116~232V 1.3~2.17AOut of stock Warranty: 90,50 €111,32 €Login to check your price HBGC-300-L-ALED driver 300W 116~232V 1.3~2.17AAvailability: Out of stockNet price:90,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHBGC-300-L-ABLED driver 300W 116~232V 1.3~2.17AOut of stock Warranty: 96,00 €118,08 €Login to check your price HBGC-300-L-ABLED driver 300W 116~232V 1.3~2.17AAvailability: Out of stockNet price:96,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHBGC-300-L-ADALED driver 300W 116~232V 1.3~2.17AOut of stock Warranty: 98,00 €120,54 €Login to check your price HBGC-300-L-ADALED driver 300W 116~232V 1.3~2.17AAvailability: Out of stockNet price:98,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHBGC-300-M-ALED driver 300W 58~116V 2.6~4.33AOut of stock Warranty: 90,50 €111,32 €Login to check your price HBGC-300-M-ALED driver 300W 58~116V 2.6~4.33AAvailability: Out of stockNet price:90,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHBGC-300-M-ABLED driver 300W 58~116V 2.6~4.33AOut of stock Warranty: 96,00 €118,08 €Login to check your price HBGC-300-M-ABLED driver 300W 58~116V 2.6~4.33AAvailability: Out of stockNet price:96,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHBGC-300-M-ADALED driver 300W 58~116V 2.6~4.33AOut of stock Warranty: 98,00 €120,54 €Login to check your price HBGC-300-M-ADALED driver 300W 58~116V 2.6~4.33AAvailability: Out of stockNet price:98,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHBGC-300-H-ALED driver 300W 29~58V 5.2~8.67AOut of stock Warranty: 90,50 €111,32 €Login to check your price HBGC-300-H-ALED driver 300W 29~58V 5.2~8.67AAvailability: Out of stockNet price:90,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHBGC-300-H-ABLED driver 300W 29~58V 5.2~8.67AOut of stock Warranty: 90,50 €111,32 €Login to check your price HBGC-300-H-ABLED driver 300W 29~58V 5.2~8.67AAvailability: Out of stockNet price:90,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHBGC-300-H-ADALED driver 300W 29~58V 5.2~8.67AOut of stock Warranty: 90,50 €111,32 €Login to check your price HBGC-300-H-ADALED driver 300W 29~58V 5.2~8.67AAvailability: Out of stockNet price:90,50 €
Description
HBGC-300 is a constant power LED power supply with a rated power of 300W and an output voltage of up to 232V. The device offers a wide range of input voltage (90 ~ 305VAC) and three different output currents: 1400mA, 2800mA, 5600mA. Thanks to high efficiency up to 94.5% and low heat losses, the power supply can operate in the temperature range from -40 to + 80 ° C. Thanks to the use of cooling with an open air circulation, the casing has a tightness class of IP67. HBGC-300 can optionally be equipped with a dimming function with 3 different methods: 0-10VDC signal, PWM signal or resistor. Depending on the model, the HBGC can be equipped with a DALI2 interface.
Application examples:
- High-bay luminaires
- Architectural floodlights
- Lighting of industrial halls
Technical Specification
- HBGC-300: Constant power LED driver 300W - SPECIFICATION
| Model | Output | Tolerance | Efficiency | Dimensions |
| HBGC-300-L | 116~232V, 1300~2170mA | +/-5% | 94.5% | 191.5x69mm |
| HBGC-300-M | 58~116V, 2600~4330mA | +/-5% | 93.5% | 191.5x69mm |
| HBGC-300-H | 29~58V, 5200~8670mA | +/-5% | 92.5% | 191.5x69mm |
