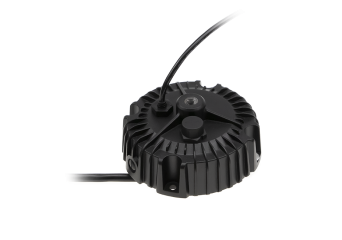

XBG-100
Constant power LED power supply
- Wide input voltage range of 90 ~ 305VAC
- Built-in PFC function
- Admissible working temperature: -40 ~ + 80 ° C
- Round housing with IP67 tightness
- In version A: regulation of the output current with a potentiometer
- For AB version: 3 in 1 dimming function (0 ~ 10VDC, PWM, resistance)
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop
Висока цена? Влезте в профила си и купете на по-ниска
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиXBG-100-ALED driver 100W 27~56V 0.875~2.78AИзчерпан Гаранционен срок: €29.60€36.41Влезте, за да проверите цената си XBG-100-ALED driver 100W 27~56V 0.875~2.78AНаличност: ИзчерпанНетна цена:€29.60 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиXBG-100-ABLED driver 100W 27~56V 0.875~2.78AИзчерпан Гаранционен срок: €32.40€39.85Влезте, за да проверите цената си XBG-100-ABLED driver 100W 27~56V 0.875~2.78AНаличност: ИзчерпанНетна цена:€32.40
Описание
XBG-100 is a constant power LED power supply with a rated power of 100W and an output voltage of up to 56V. The device offers a wide range of input voltage (90 ~ 305VAC) and current up to 2780mA. Thanks to high efficiency up to 92% and low heat losses, the power supply can operate in the temperature range from -40 to + 80 ° C. Thanks to the use of cooling with an open air circulation, the casing has a tightness class of IP67. The XBG-100 version A has the option of adjusting the output current with a potentiometer on the housing. The AB version is equipped with a dimming function with 3 different methods: 0-10VDC signal, PWM signal or resistor.
Application examples:
- High-bay luminaires
- Architectural floodlights
- Lighting of industrial halls
Техническа спецификация
- XBG-100: Constant power LED power supply - DETAILS
| Model | Output | Tolerance | Efficiency | Dimensions |
| XBG-100 | 27~56V, 875~2780mA | +/-5% | 92% | 130x56mm |
| XBG-100-A | 27~56V, 875~2780mA | +/-5% | 92% | 130x56mm |
| XBG-100-AB | 27~56V, 875~2780mA | +/-5% | 92% | 130x56mm |
