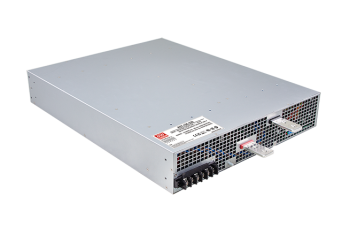

RST-15K
Parallel three-phase power supply with high output voltage
- 3Ø input voltage: 3-wire Δ or 4-wire Y 196 ~ 305 VAC
- parallel operation up to 2x RST-15K
- built-in active PFC function
- high efficiency up to 94.5%
- voltage adjustable from 1 ~ 120% with external voltage
- control of the output voltage with a built-in potentiometer
- built-in remote on / off function
- working temperature -30 ~ + 70 ° C
- compliance with many standards and certificates
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Висока цена? Влезте в профила си и купете на по-ниска
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRST-15K-115switching power supply 15000W 115V 130AИзчерпан Гаранционен срок: €3,427.60€4,215.95Влезте, за да проверите цената си RST-15K-115switching power supply 15000W 115V 130AНаличност: ИзчерпанНетна цена:€3,427.60 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRST-15K-230switching power supply 15000W 230V 69AИзчерпан Гаранционен срок: €3,427.60€4,215.95Влезте, за да проверите цената си RST-15K-230switching power supply 15000W 230V 69AНаличност: ИзчерпанНетна цена:€3,427.60 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRST-15K-380switching power supply 15000W 380V 45AИзчерпан Гаранционен срок: €3,427.60€4,215.95Влезте, за да проверите цената си RST-15K-380switching power supply 15000W 380V 45AНаличност: ИзчерпанНетна цена:€3,427.60
Описание
RST-15K is a high-power power supply adapted to be supplied with three-phase voltage (delta or star connection). The output voltage is 115V, 230V, 380V. It is possible to adjust the output voltage with a potentiometer or an external 1-5VD signal. In the RST series, overload protection can be realized as a constant current limit or with a delayed trip after 5 seconds. The models have an active PFC system and an efficiency of up to 95%. The devices can be connected in parallel to increase the power up to 30kW by connecting four RST-15K models.
Техническа спецификация
- RST-15K: Parallel three-phase power supply with high output voltage ~15000W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| RST-15K-115 | 115V, 0~130A | +/-1% | 1V | 93% |
540x424x83.5mm
|
| RST-15K-230 | 230V, 0~69A | +/-1% | 2V | 94% |
540x424x83.5mm
|
| RST-15K-380 | 380V, 0~45A | +/-1% | 4V | 94.5% |
540x424x83.5mm
|
